TECHNICAL DETAILS

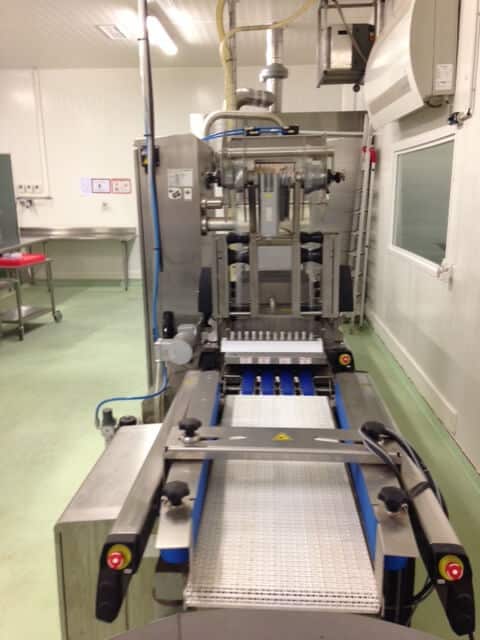

Automatic thermoforming machine MULTIVAC

Type R145 N°145384
Year 2011
Stainless steel construction
Rates: 6 cps / min
Approximate dimensions: Length = 4120 mm // Width = 1039 mmm // H = 1936 mm
Loading station length: 1200 mm

Packaging material :
Bottom film (rigid): type APE/EVOH/PE width 357 mm, thickness 400 µm, sealable, thermoforming
Top film (soft): PET/PE type, width 355 mm, thickness 70 µm, weldable, printed in register possible
IP06 servo control, Windows XPe operating system
Equipped with film edge winders
Exit belt length 1100 mm x width 400 mm

This machine was purchased new and maintained by a Multivac network sub-contractor.
Technical documentation provided.

Currently has 2 formats, sold with lower and upper film stocks.

Current equipment state as new because used only few hours in production. (661 hours / 135 711 cycles)

Additional information

Année

2011

État

Nearly new

Brand / Manufacturer

Multivac

Visible

Visible when power off
