Gericke NBS 200/200 – Nibbler
Manufacturer : Gericke Model : NBS 200/200 Type : Nibbler Year: – Power motor : 1,1 kW / 1500 RPM Sieve : Ø 5mm Atex : Ex II d IIC T4 Machine size : 60 x 85 x 125 cm Weight : 55kg
Manufacturer : Gericke Model : NBS 200/200 Type : Nibbler Year: – Power motor : 1,1 kW / 1500 RPM Sieve : Ø 5mm Atex : Ex II d IIC T4 Machine size : 60 x 85 x 125 cm Weight : 55kg

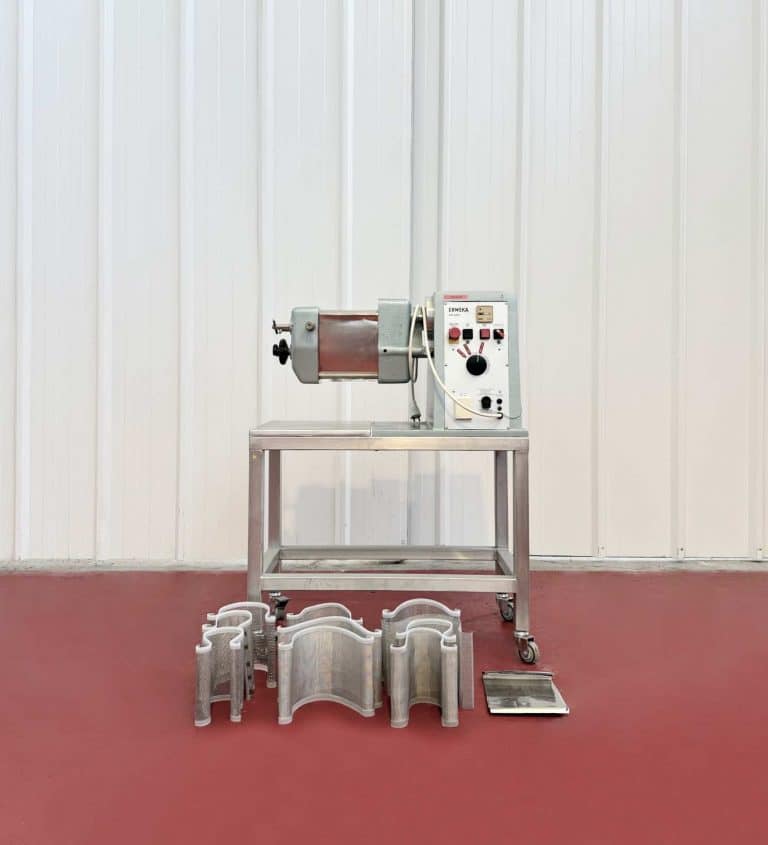

Manufacturer: Erweka Model: AR400 Type : Oscillating powder granulator Power : 0,5 KW Coupling for quick and easy attachment of various devices. Available tools: FGS calibrator (Mesh size: 1.40 (x3); 1.25; 0.80 (x2); 3.15 (x2); 0.1) Materials in contact with product: stainless steel Variable speed

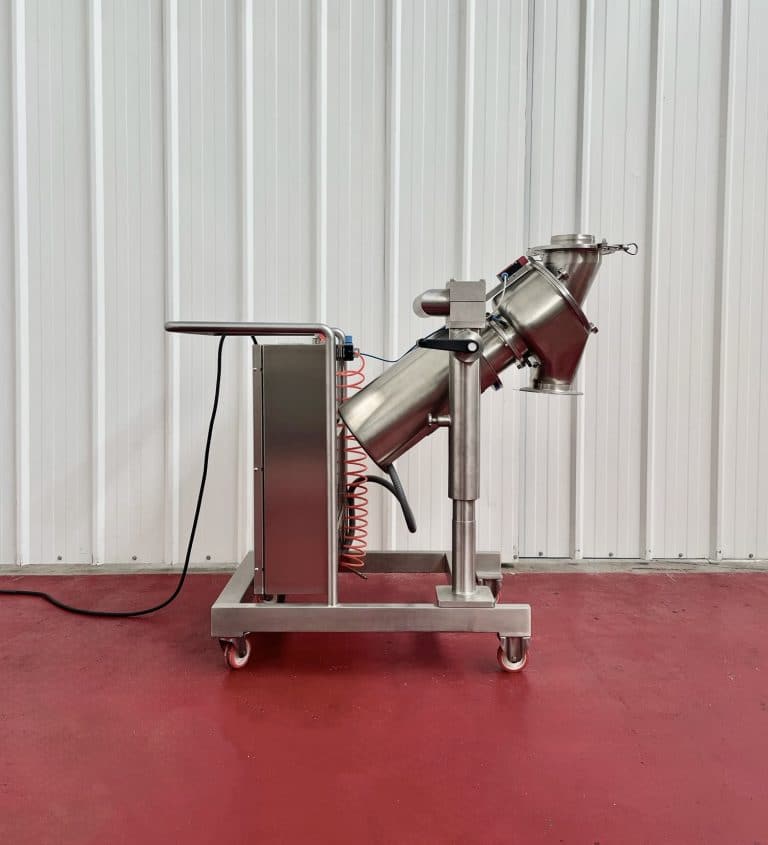

Manufacturer: Zanchetta Model: Piraña Year: 2003 Type : Calibrator for granulated or wet products Applications: pharmaceutical, food, chemical, cosmetics … Installed electrical power: 3 kW Power supply : 380V – 3 phases – 50 Hz Motor speed : 1440 rpm Dry air consumption: 15 L/min at 2.5 bars Available basket diameters: min Ø 800µ – max 4500µ Treated
Manufacturer : Frewitt Modèle : MG-123 Year: 2001 Classification ATEX : EExe Type : Oscillating Atex Granulator Material : stainless steel Size : 80 x 90 x 130 cm Power : 0,37 KW Motor : Stober rotor : 100 mm x 80 mm Variable speed, regulator: mechanical Mounted on a stainless steel frame with 4 wheels 10 grids supplied with
Manufacturer : Frewitt Model: MGIF 624 Year : 1975 Type: Stainless steel oscillating arm granulator Material : stainless steel Overall dimensions: 130 X 90 X 250 CM Motor power : 1,5 KW Rotor dimensions: length 44 cm / diameter 13 cm Variable speed, regulator: mechanical Mounted on a stainless steel chassis with 4 wheels Capacity: approx. 1000 kg/h depending on
Document doc-Gericke-Nibbler.pdf Description Mill for the size reduction and recycling of agglomerates, lumps and granules in mass. Manufacturer: Gericke Model: NBS 300/450 Year: 1999 Choice of granulometry: Grid or wire mesh Operating principle: Rotor with 4 blades. cutting effect on the product with the screen. Inlet section: 300 x 350 mm. Power: 3,7 KW Max capacity : 12.000 L/H (depending
Manufacturer : Frewitt Model : MG-336 Year : 1995 Type: Stainless steel rotary oscillating arm granulator Capacity: approximately 100 to 500 kg/hour depending on the nature of the product. 5-arm oscillating rotor – Length 200 mm / Ø 115 mm Stator: Sieve / Grid depending on particle size Materials: stainless steel Atex classification: EExe II T 4 Motor power: 0.55
Manufacturer: Ytron Quadro Comil Model: 194S Classification: ATEX Type : Granulator for size reduction, deagglomeration, dispersion, separation and adjustment of product density. Application : Bulk powders or granules. Dry or wet. Sieve: conical Interchangeable screen according to desired particle size Power: 4 kW Materials:Stainless steel Capacity: Medium size. Approx. 1750 kg/h max. depending on product and grate.
Manufacturer : Frewitt Model: MF-6 Year: 2004 Type: Oscillating granulator Materials : Stainless steel Dimensions : 125 x 75 x 180 cm Motor power : 1,1 KW Motorization : Lenze Variable speed, regulator : mechanical Mounted on a stainless steel frame with 4 wheels Capacity : about 1000 kg/h depending on product Technical file available.
Document : documentation-frewitt-mg633.pdf Technical description : Oscillating granulator in stainless steel Use : Dry granulation / Screening / Crushing / Grinding / Wet granulation Manufacturer: FREWITT FREWITT Model MG-628 Year : 1991 Variable speed, regulator : mechanical ATB motor power : 1,0 KW Lenze gear motor : 1,1 KW Atex : EEx e II PTB Different sieve screens available, selectable:
