Manufacturer : Olsa Type : Melter Volume : 30L Tank bottom agitation: dispersion rotor Pressure inside : 1 bar Pressure gauge Temperature sensor H+ Valves safety valve (ATEX Jacketed : Water pressure : 4 bar Steam pressure : 4 bar Material : stainless steel Power : 1,5 kW Moteur speed : 3000 tr/min Electrical supply : 220 V Heat

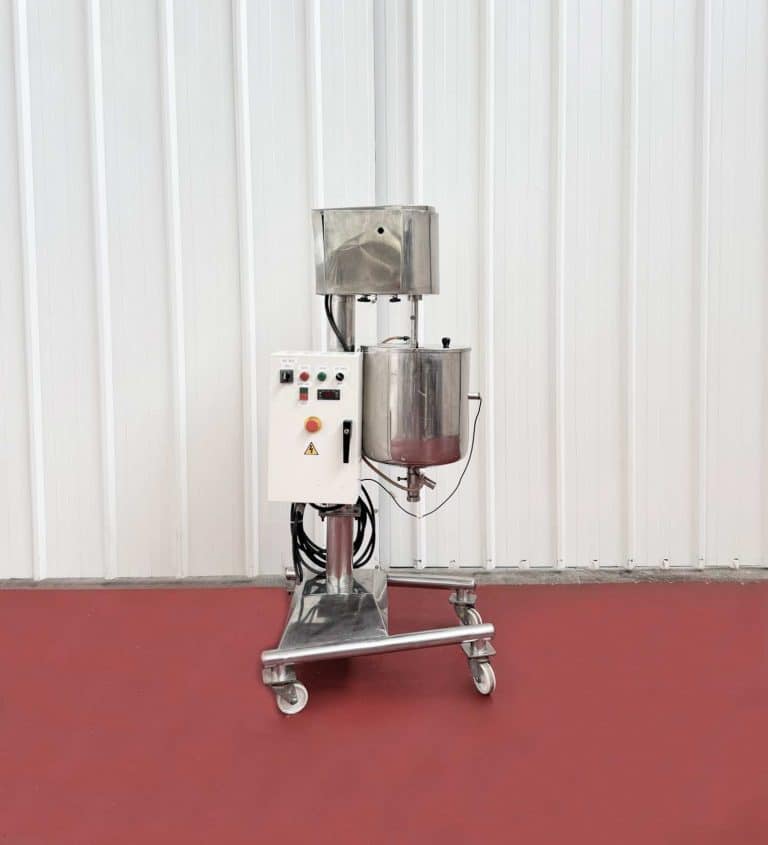

Manufacturer : – Year : 2007 Type: Melter with heating elements – immersion heaters Volume : 35 L Anchor blade stirring with Teflon scrapers Tank lid Variable speed drive: mechanical and manual Jacketed : Yes Immersion heaters: 2 Workshop test temperature: 80°C Recirculation pump for jacket Electrical cabinet Video available in running condition

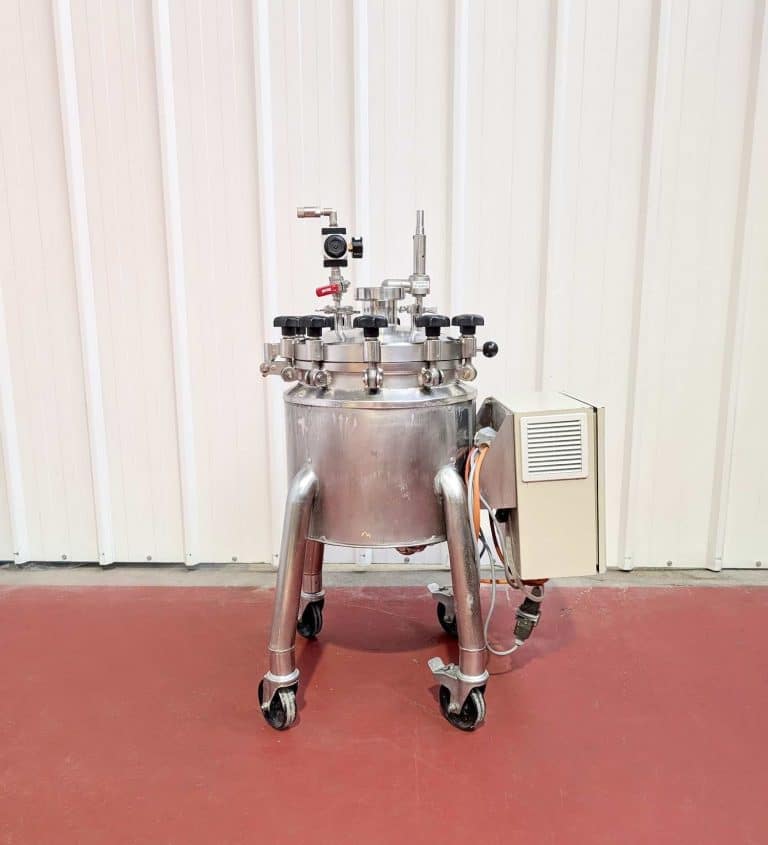

Type : Melter Inside diameter : 40 cm Useful height : 38 cm Usable capacity : 45 L Enclosed jacket with immersed heating elements: tank bottom + shell Max. permissible tank temperature: 280°C Pressure: 4 / -1 bar Pneumatic drain valve T°C sensor Thermal regulator Insulation Pressure gauge: air injection.
Manufacturer : Oskar Krieger Maschinen Model: Fondo Mat Universal 500 Year : 1975 Type: Melter / process vessel Classification: ATEX Up/down: hydraulic unit Mixing head rotation: manual Stainless steel coil: liquid and/or steam Mixing: 705 rpm Vacuum and pressure tight lid : -1 / +1 bar Maximum temperature: 140°C diameter of filling port: DN200 Vessel : total capacity:
Material: 316 L stainless steel Tank pressure: 50 psi / approx. 3.5 bar Double jacket pressure: 90 psi / approx. 6 bar Temperature: 300°C Heat source: external (not supplied) Diameter: 600 mm / Depth: 600 mm Hinged lid 3 clamp connections diameter 50 mm 1 temperature tap Total opening / closing 8 clips Total draining Year : 1988 Mobile unit
Manufacturer : Officine Laborall Model: Antares Year : 2011 Type : Stirred melter Capacity : 100L Shaker motor power : 1,5 kW Total power : 7 KW Heating: 2 immersion heaters Product temperature sensor Vessel dimensions : ∅ 65 cm – H 70 cm Machine dimensions : 90 x 80 x 150 cm Shaft and stirrer/mixer not available.
Type : Tilting melter Electric heating : 2 immersion heaters Slow mixing Material in contact with the product : stainless steel
Agitated melting tank, process vessel previously used in cosmetics Manufacturer: Olsa Model: – Year: – Capacity: 300 litres Stirring Rayneri Speed variation : mechanical from 330 to 1625 rpm Double jacket External heating source, not supplied with the equipment.
