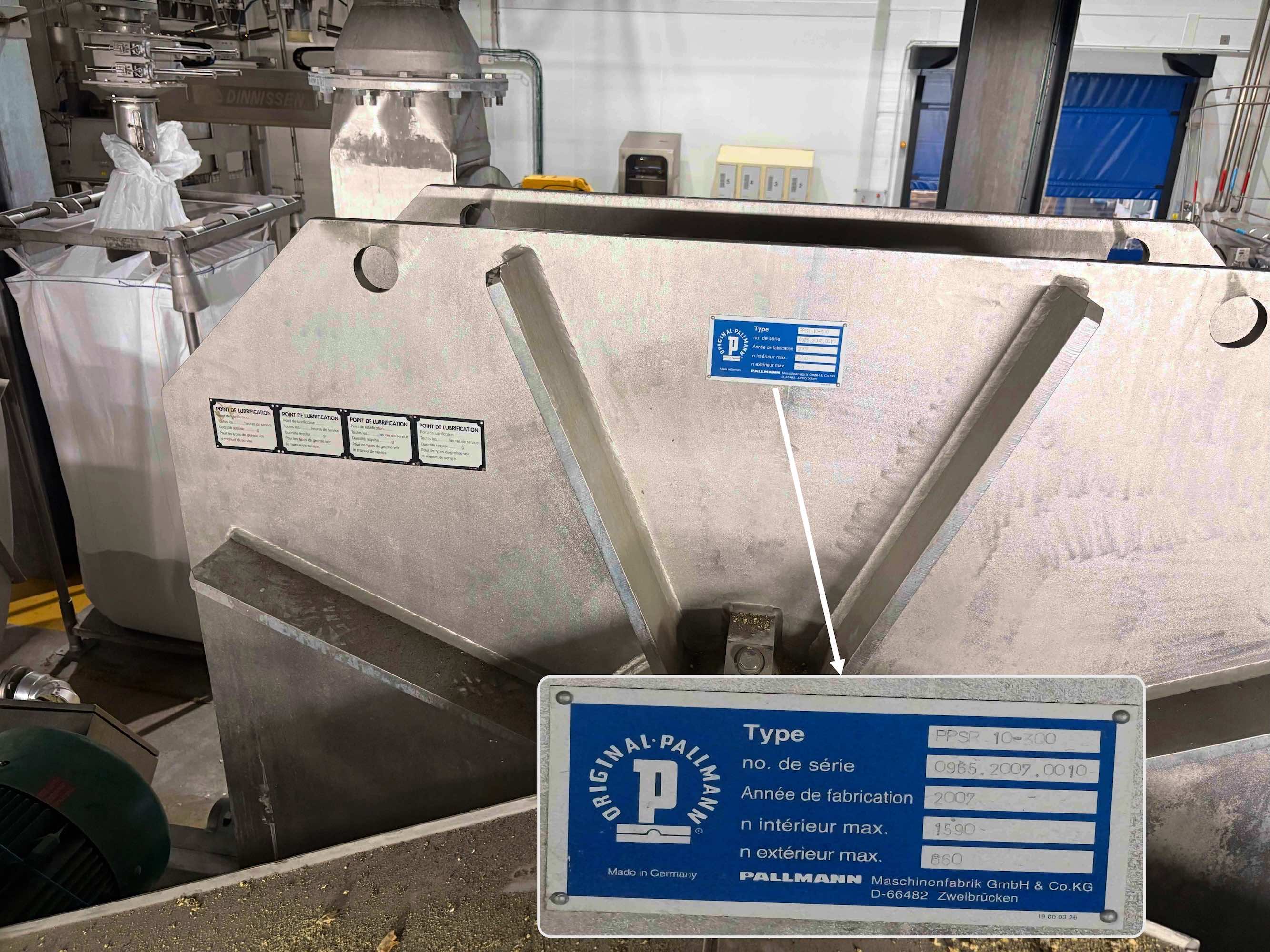

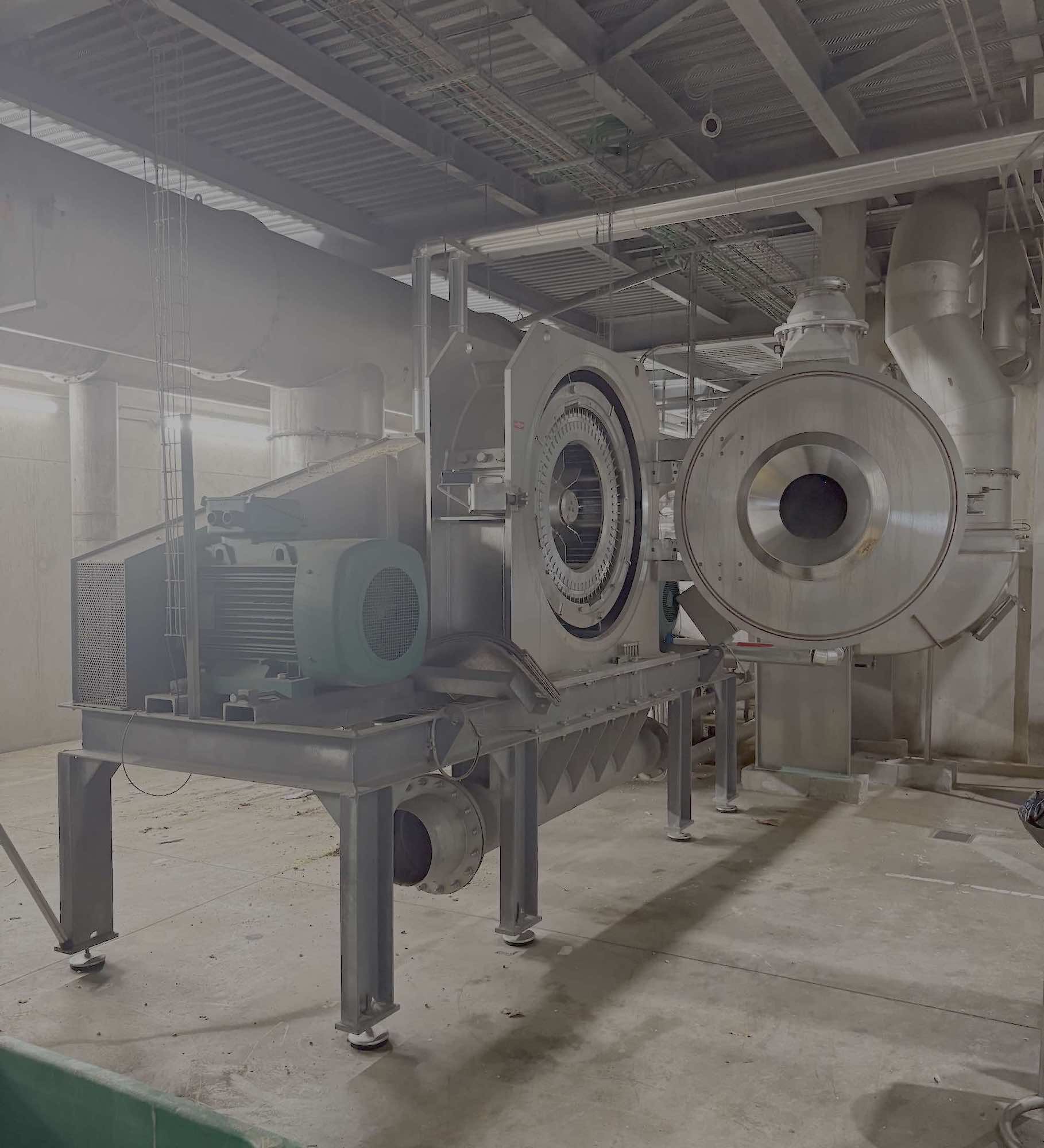

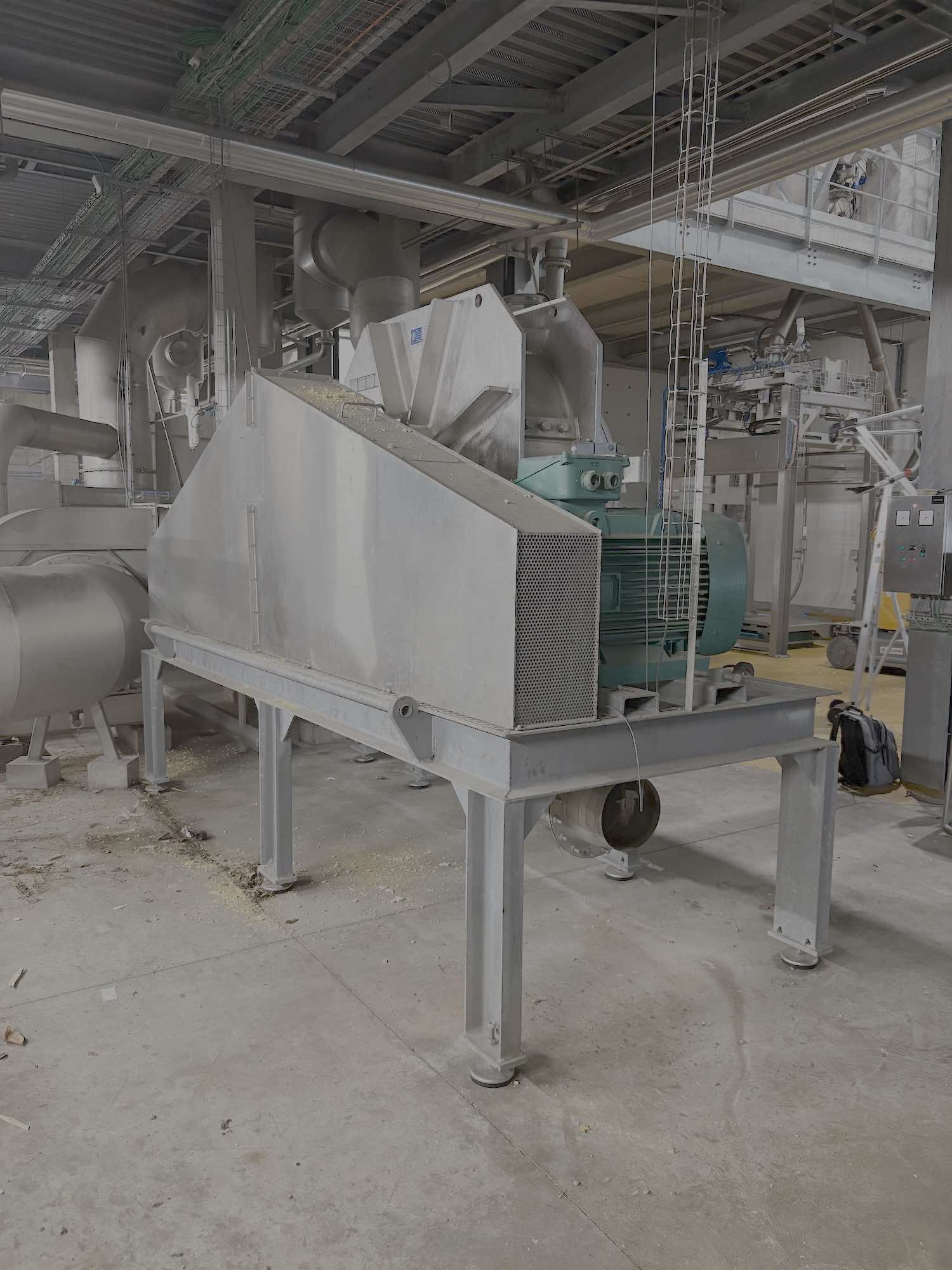

Manufacturer: Pallmann
Model: PPSR 10-300
Year: 2007
Type: Contra Selector mill / Fine Impact mill
Gentle grinding of dry or wet materials, soft to medium hard. High-throughput cold grinding with fine particle size distribution.
Weight : 7000 kg
Rotor drive speed: 1590 rpm (110 kW, 380 V, 1500 rpm)
Sieve basket speed: 660 rpm (55 kW, 380 volts, 1500 rpm)

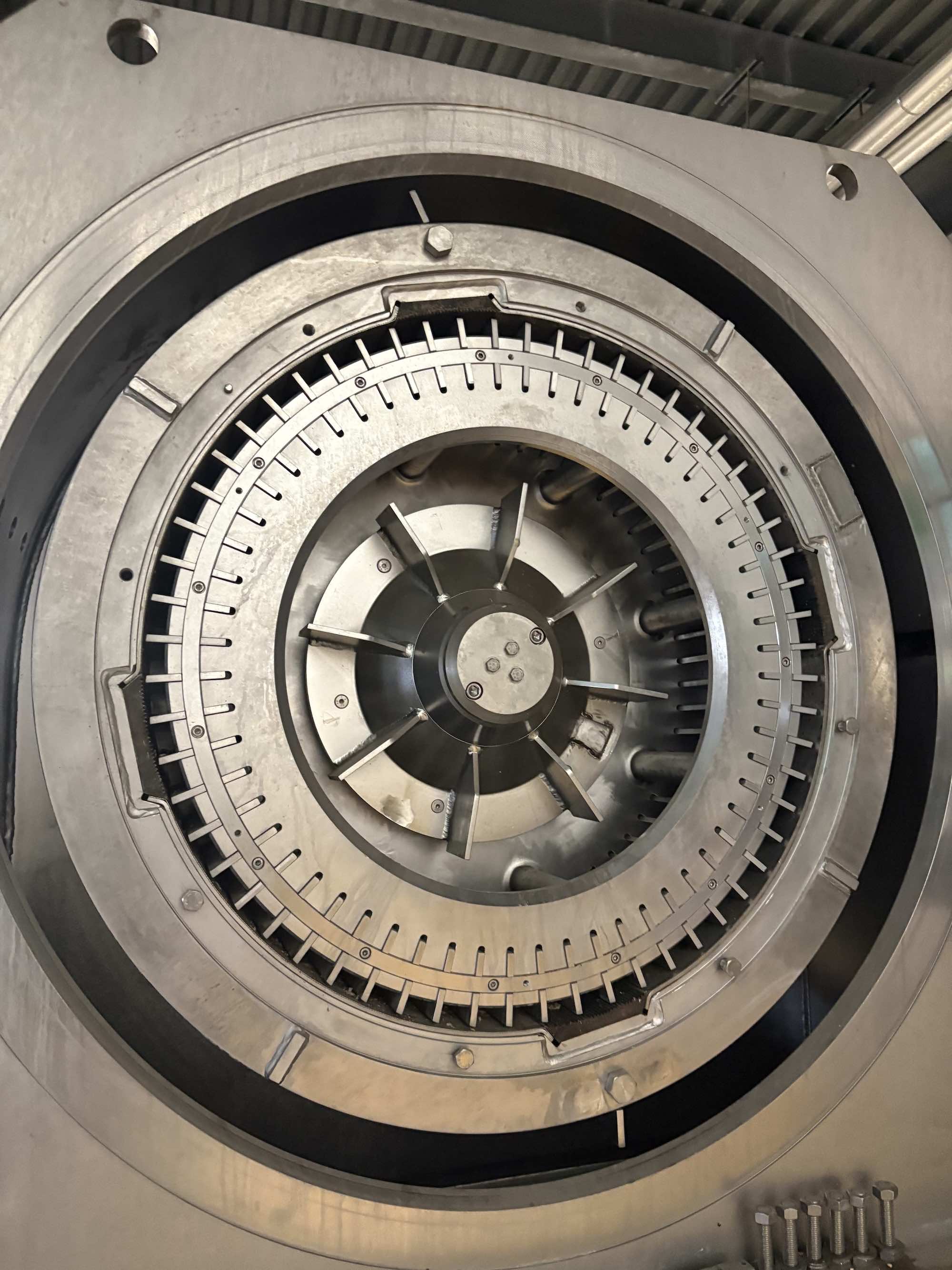

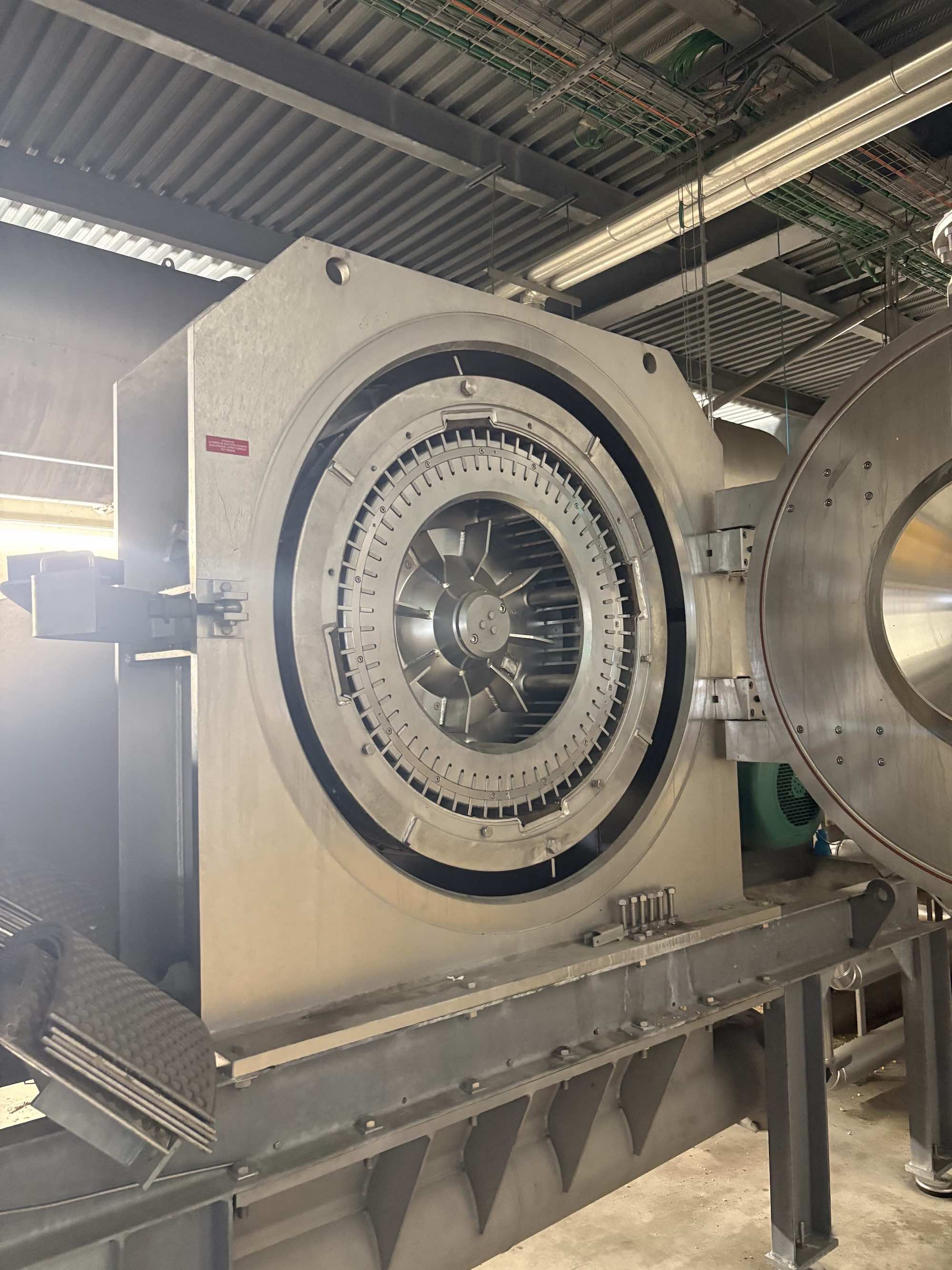

Impact rotor diameter: Ø 100 cm
Screen width: 30 cm
Number of hammers: 60

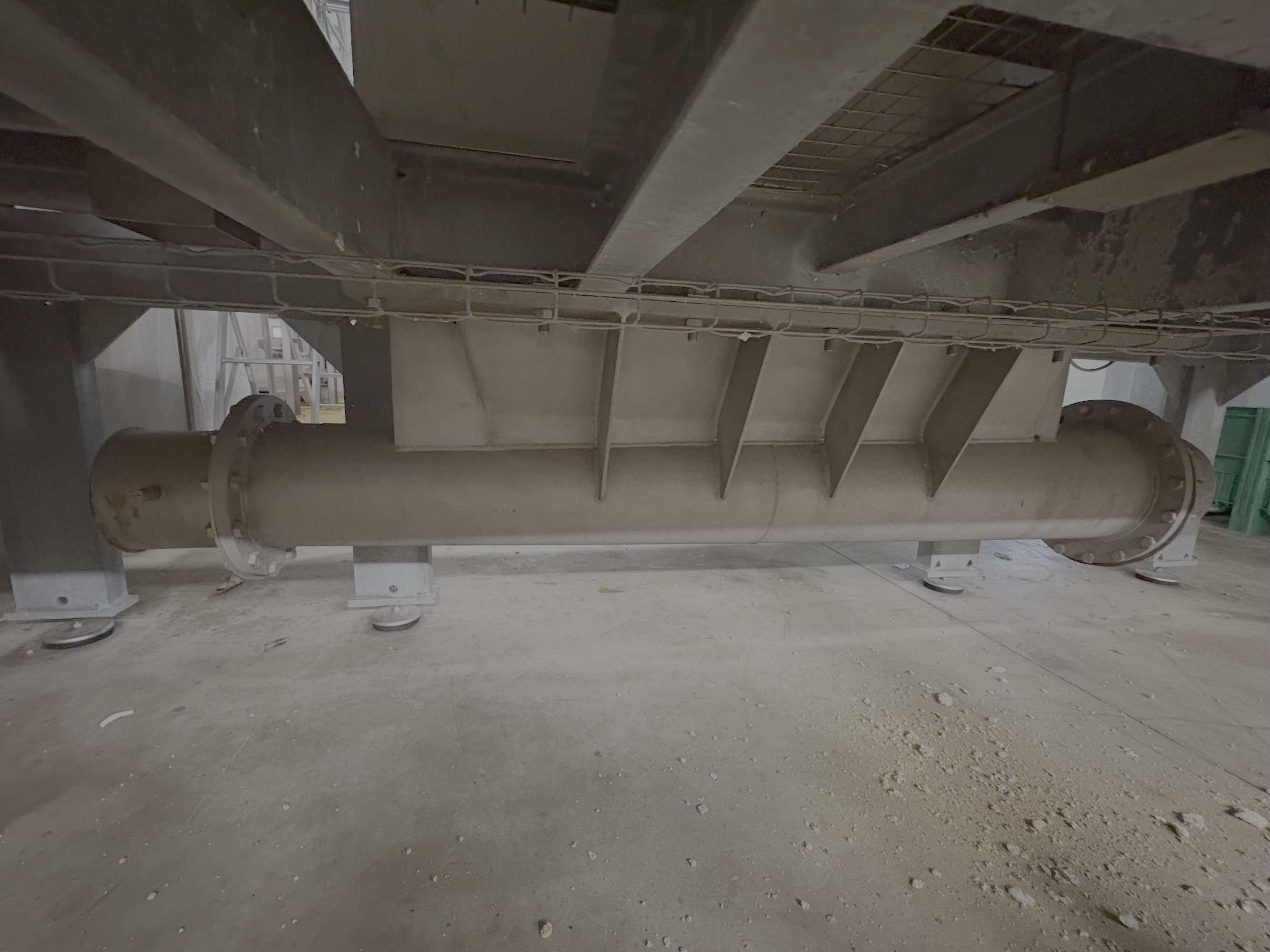

Pneumatic transfer pickup at machine exit
Material : 316L stainless steel
Technical documentation available
