Tonelli M120 + EL120 – Planetary mixer and lift

Contact details :
Language preference :
Your request :
You can enter your questions here. Please provide us information about your project or your needs. We will contact you as soon as possible.
OR

TECHNICAL INFORMATION

Manufacturer: Tonelli Tonelli

Model: M120 & EL120

Year : 2022



Type : Planetary mixer 120 L

Year : 2022

Mixing tool : 2 beaters + 1 scraper

AISI 304 stainless steel bridge structure

5.5 kW motor on variable speed drive for planetary movement of work tools

1.5 kW motor for raising and lowering the tank

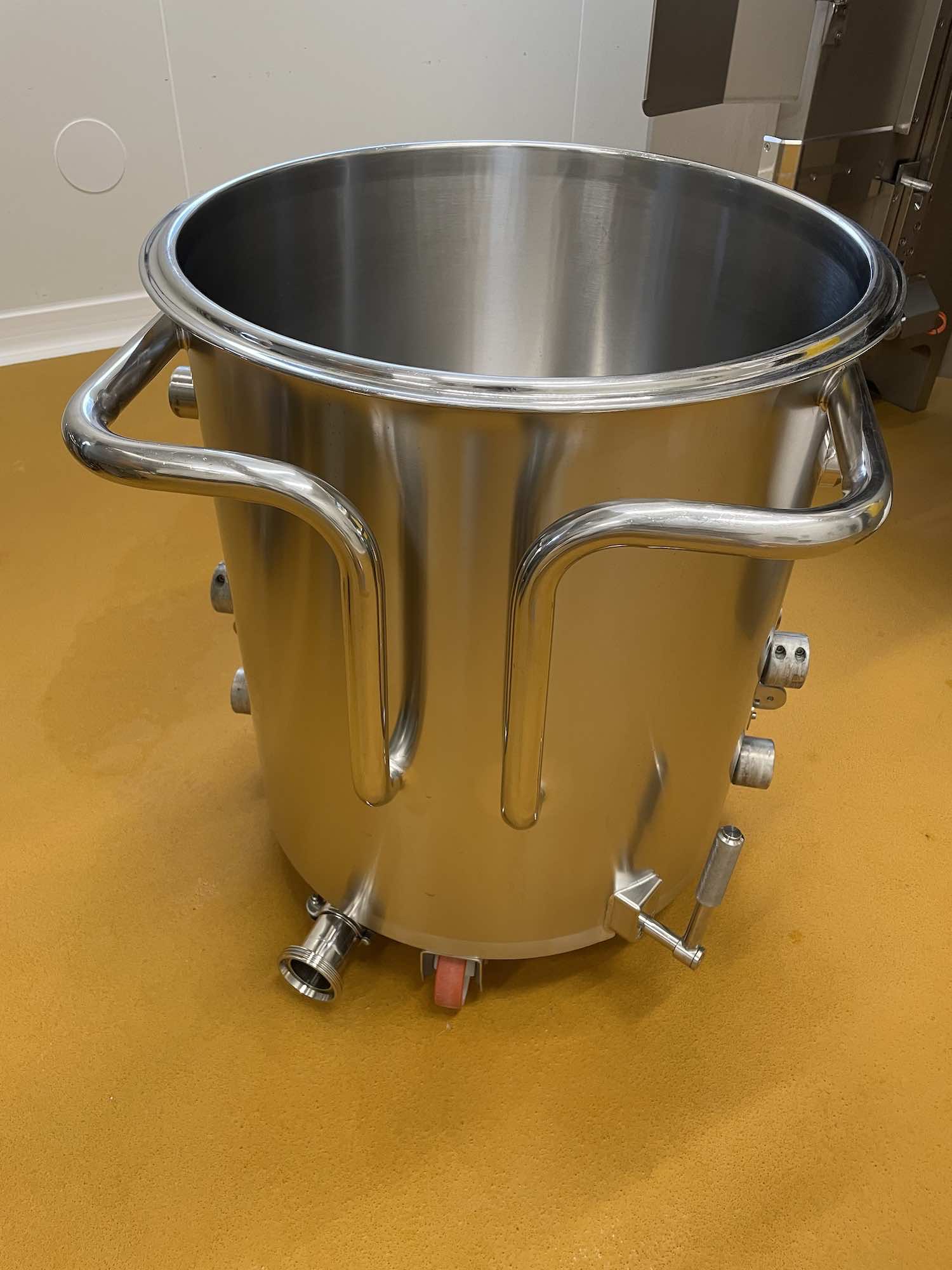

One 120 L tank with DN 50 manual valve
– AISI 304 version
– Capacity 120 litres
– Manual drain valve DN 50.

Protection against accidents :
– double – front door fitted with safety microswitch
– fixed rear guards

Integrated electrical cabinet + HMI

Weight: 1100 kg



Type : El 120 lift

an EL/120 inclined column tipper-lifter

  • Electrical supply 400 Volts
  • Frequency 50 Hz
  • Installed power 2 kW
  • Mains air pressure 6 bar
  • Maximum load capacity 300 Kg

Mobile structure (4 wheels) made entirely of AISI 304 stainless steel
Standard unloading height 1,900 mm from floor
