IMMEQUIP CEMH-LAM360 – Cutter / Laminator

Manufacturer : IMMEQUIP Engineering

Model : CEMH-LAM360

Year : 2024

Type : Cutter / Laminator

Structure & design: All-stainless steel 304L mechanically welded frame
Fitted with 4 swivel wheels with brakes
Fully enclosed machine (compliant with 2006/42/EC)
Access secured by coded magnetic sensors

Dimensions
Longueur totale : 3550 mm
Hauteur tapis entrée : 1025 mm (±15 mm réglable)
Hauteur tapis sortie : 737 mm
Largeur bandes : 360 mm

Convoyage : Tapis d’entrée
– Bande NEOBELTING silicone blanc
– Température max : 90°C en continu
– Vitesse : 17 m/min
– Motorisation : 0,37 kW – triphasé 400V

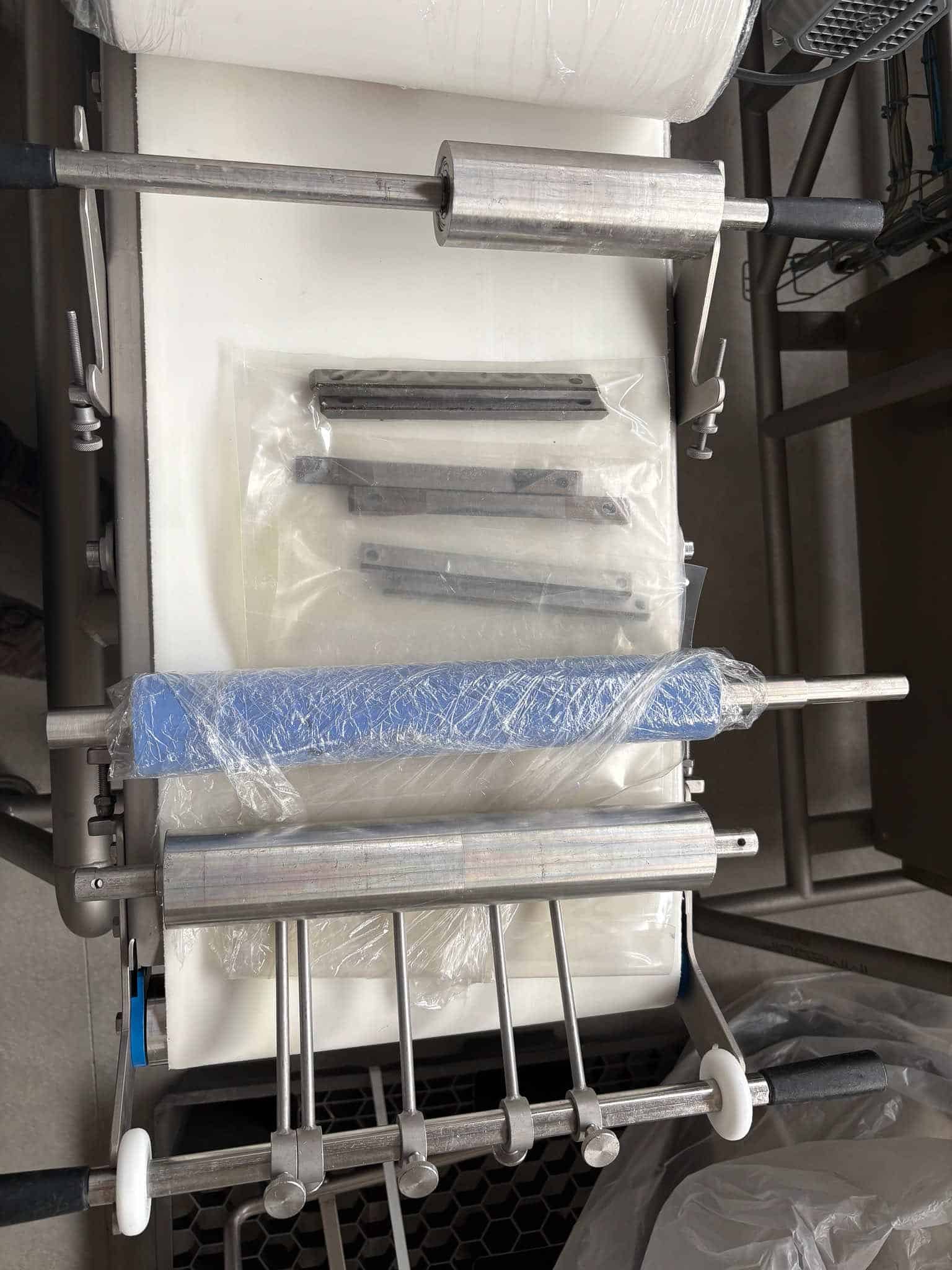

– Option fournie avec la machine : guidage produits par peigne inox + rouleaux presseurs (voir photo)

Conveyor system: Exit conveyor
– White silicone NEOBELTING belt
– Speed: 43 m/min
– Motor: 0.37 kW – three-phase 400V
– Integrated air blow-off ramp

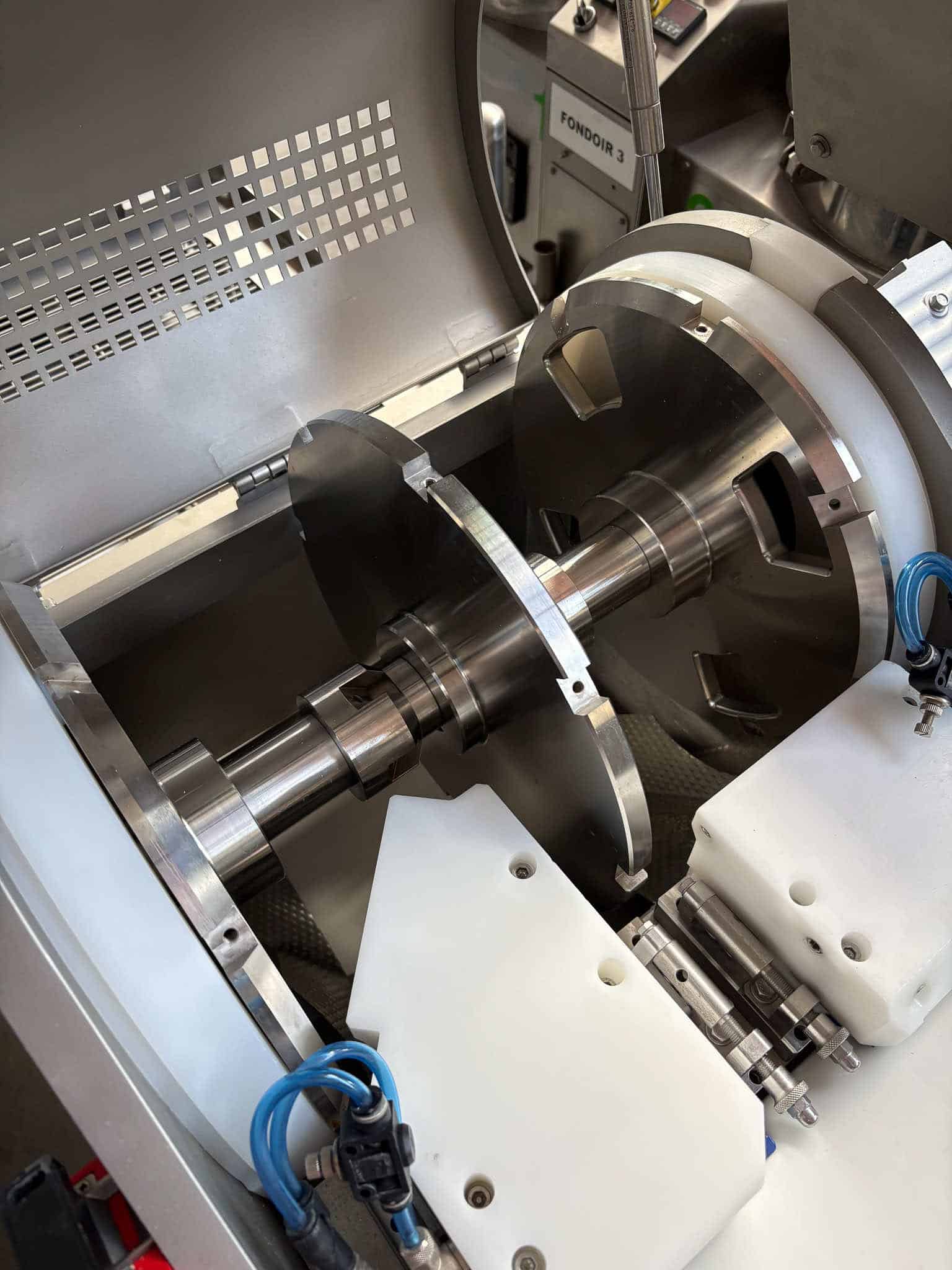

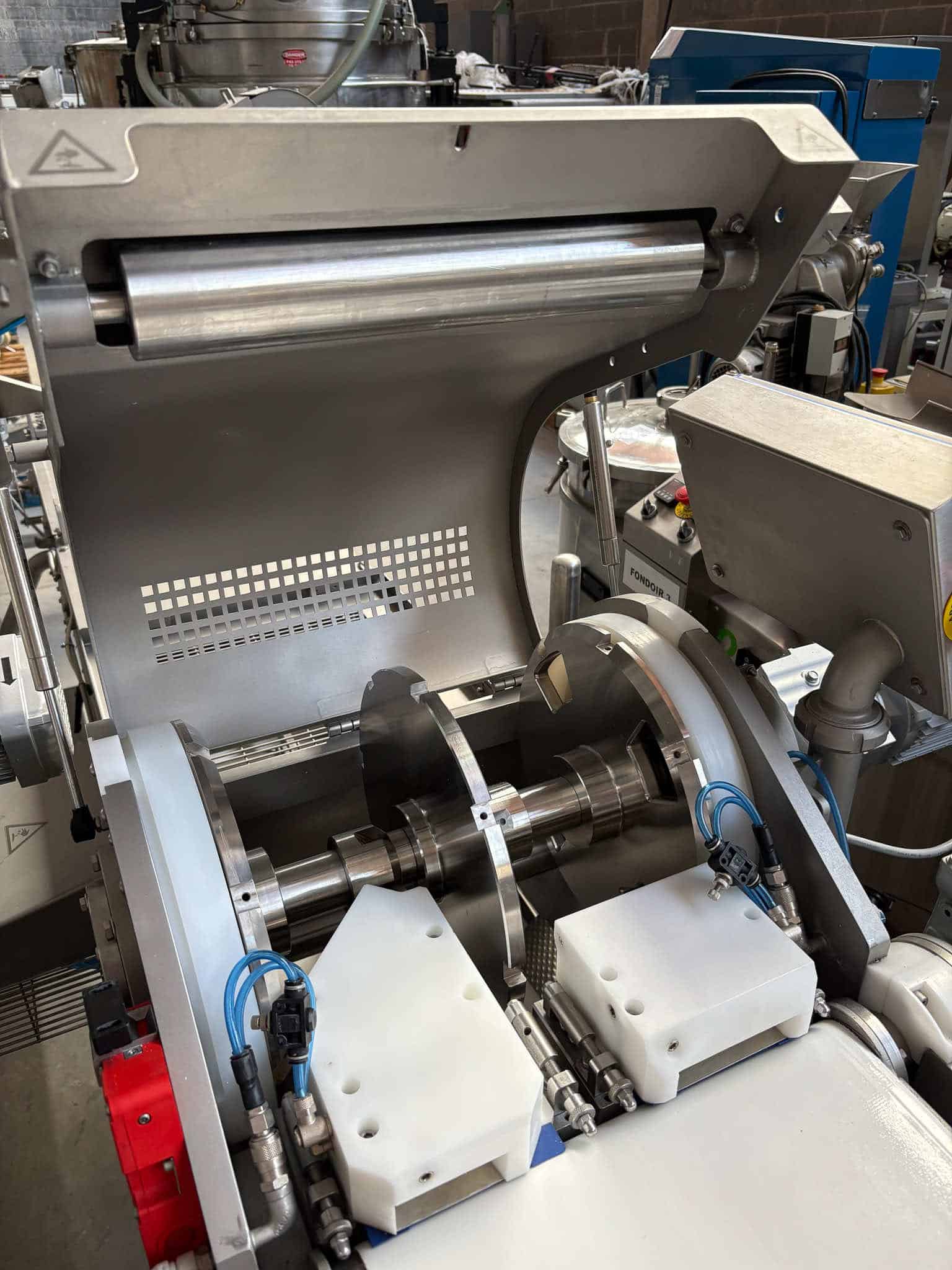

Cutting unit
– Cutting wheel Ø350 mm
– 3 blade holders (45° and 90°)
– Hardened and ground steel blades (Z30C13 – 40/42 HRC)
– Rotation speed: 72 rpm
– Motor: 0.37 kW – three-phase 400V
– Stainless steel housing with adjustable pressure roller
– Stainless steel roller guide
– Cutting kit options: 90° and 45°

Product orientation kit: 2 symmetrical sets, each comprising 1 cell, 1 stop flap and 1 pneumatic cylinder

Laminating / rolling function
– Hollow stainless steel roller, Ø140 x 350 mm
– Motor: 0.12 kW
– Speed: 29 m/min
– Precise gap adjustment (1 to 30 mm)
– Adjustable anti-clogging scraper

Conveyor system: Intermediate conveyor
– HABASIT belt, type WVT-140
– Speed: 29 m/min
– Motor: 0.18 kW
– Stainless steel drum, Ø44 mm
– Tension and position adjustment

Power supply: Three-phase 400V – 50 Hz
SIEMENS G120C frequency converters (x5)
SIEMENS 7-inch operator display (HMI)
Full machine control
Buzzer + power-on indicator light
Emergency stop buttons (including 1 on the cutting unit side)

Technical documentation available
