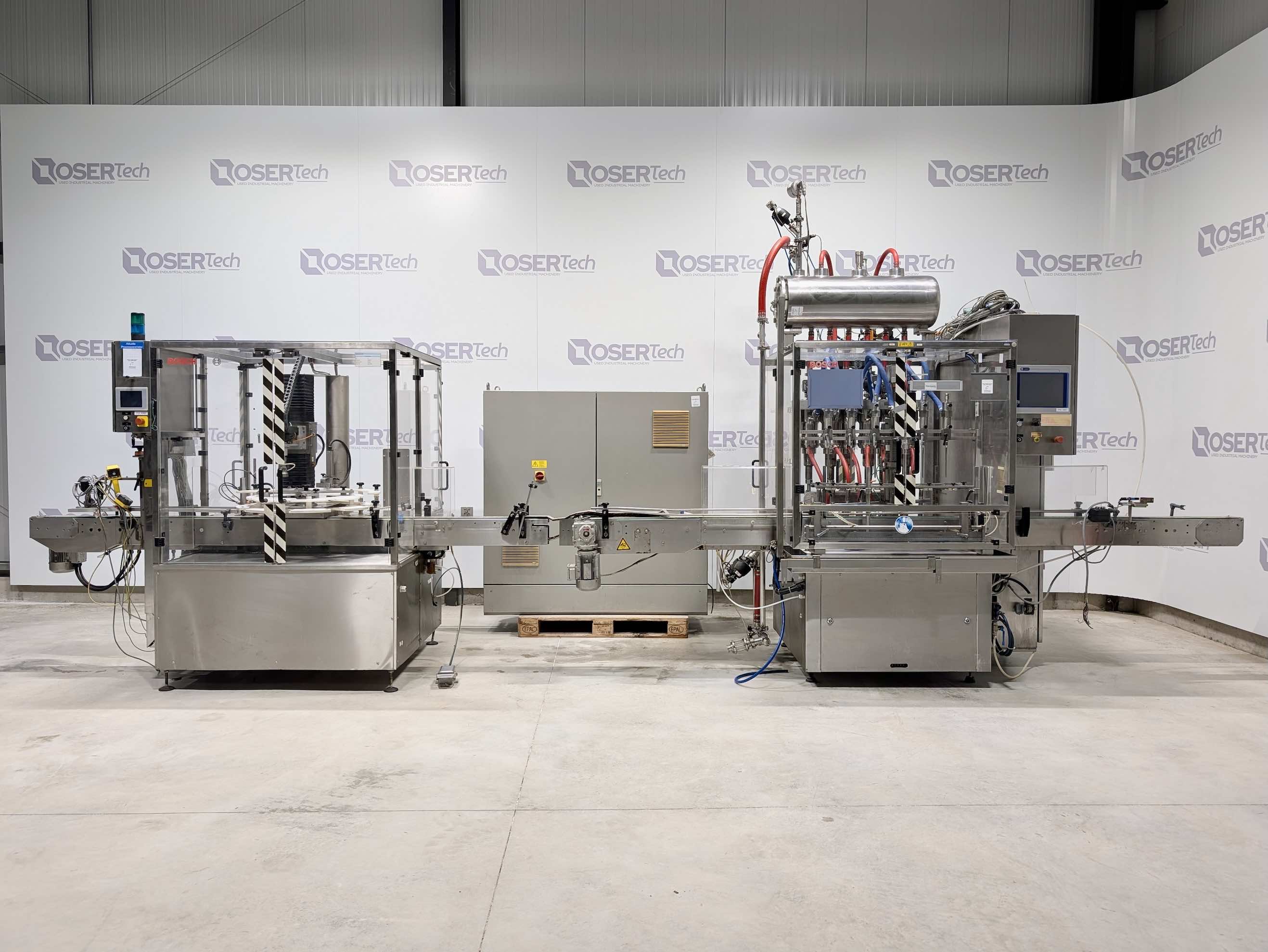

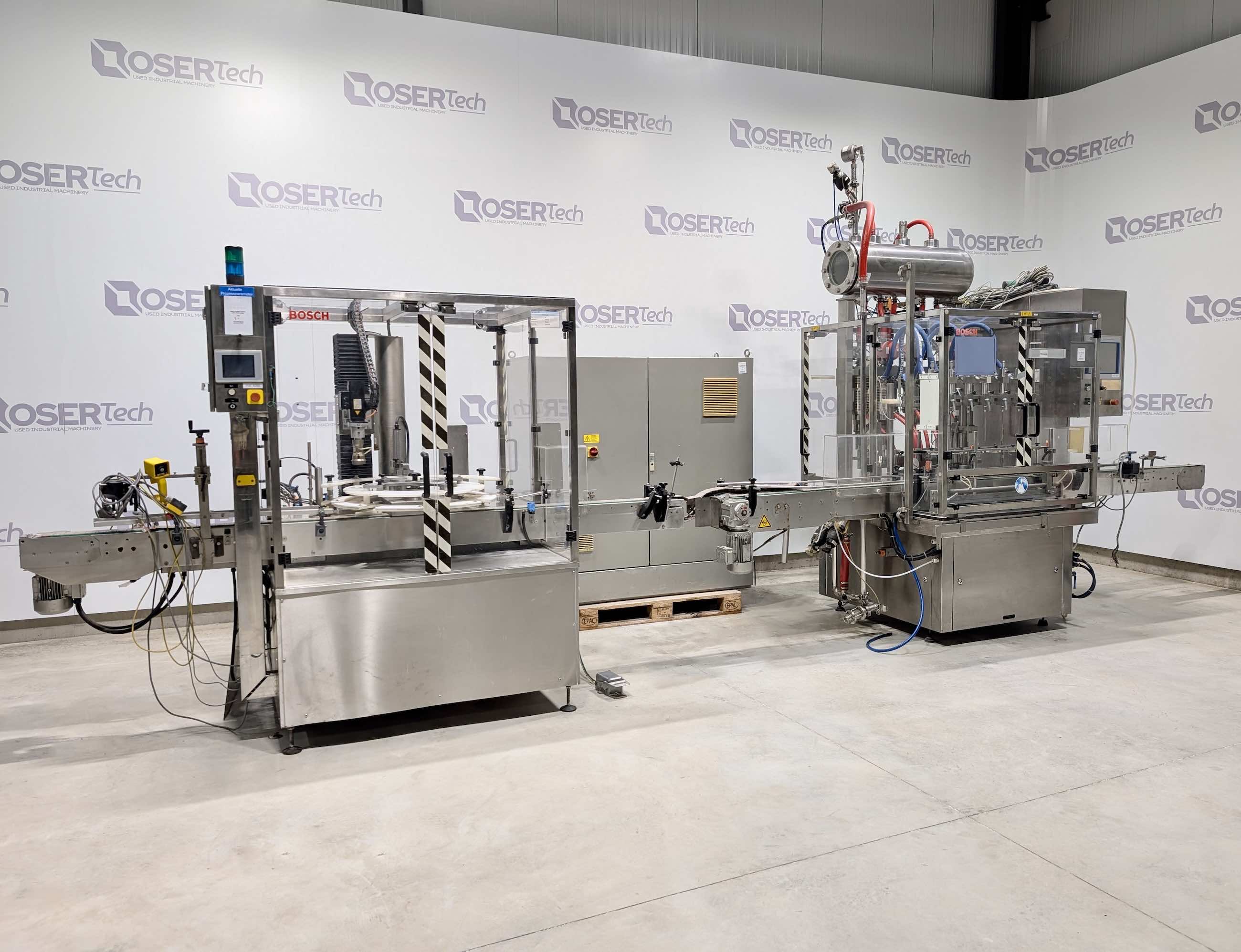

Bosch FLK 6040 / VLM 7010 – Filling line

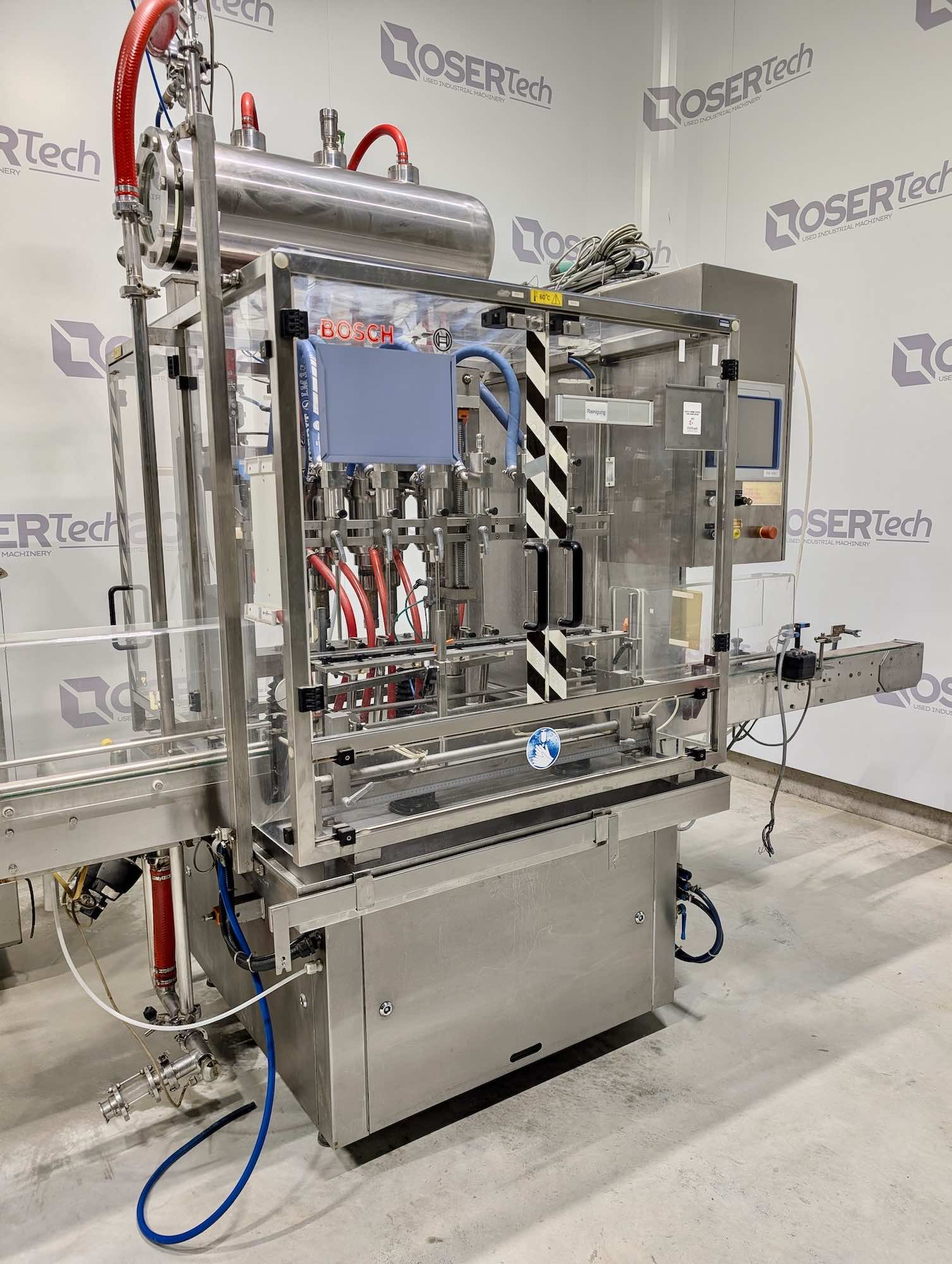

Automatic in-line filling machine:

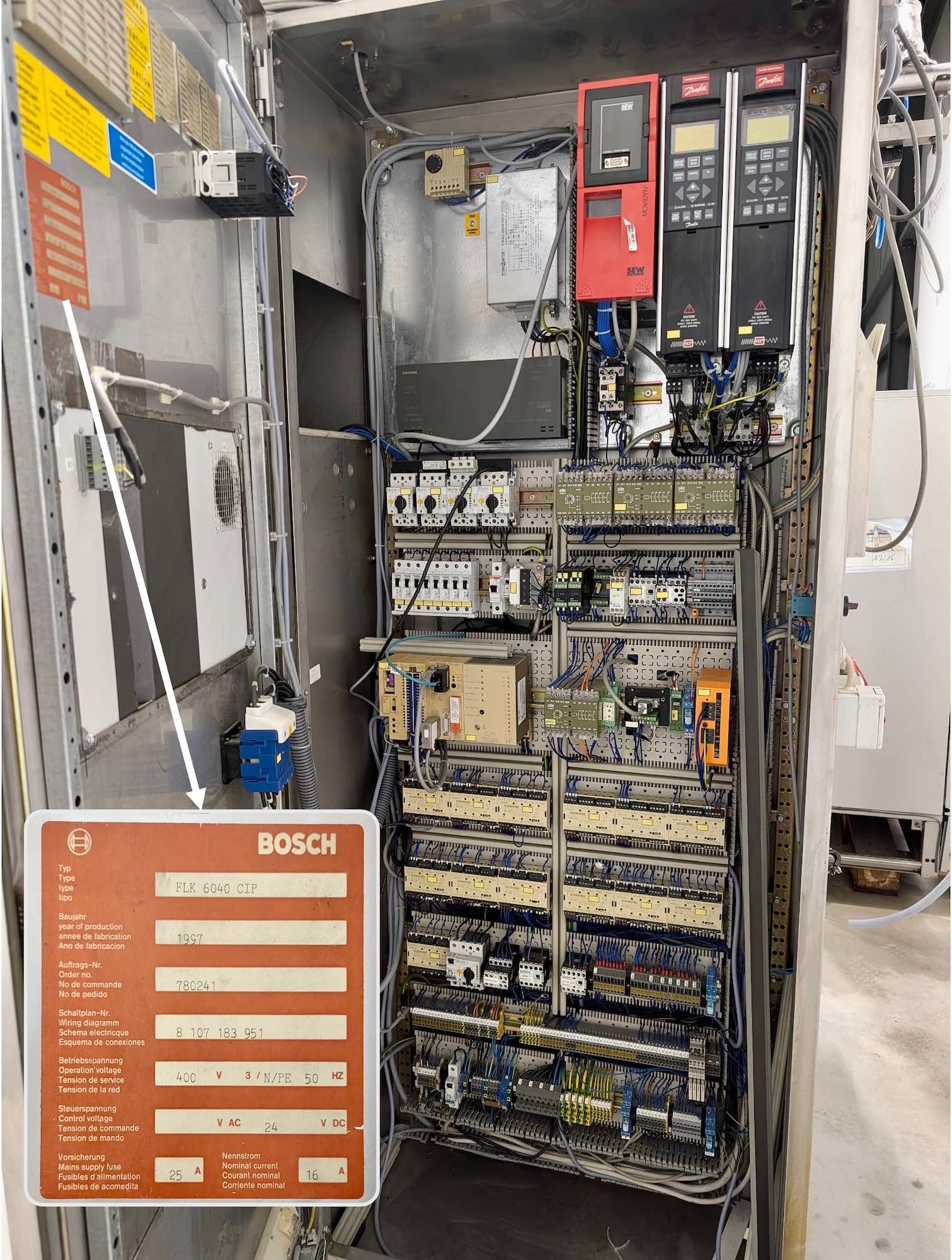

Model: Bosch FLK 6040 CIP

Year : 1997

Power: 5 kW

Speed: 30-40 bottles/min

Conveyor width: 8 cm

Transporting bottles from right to left

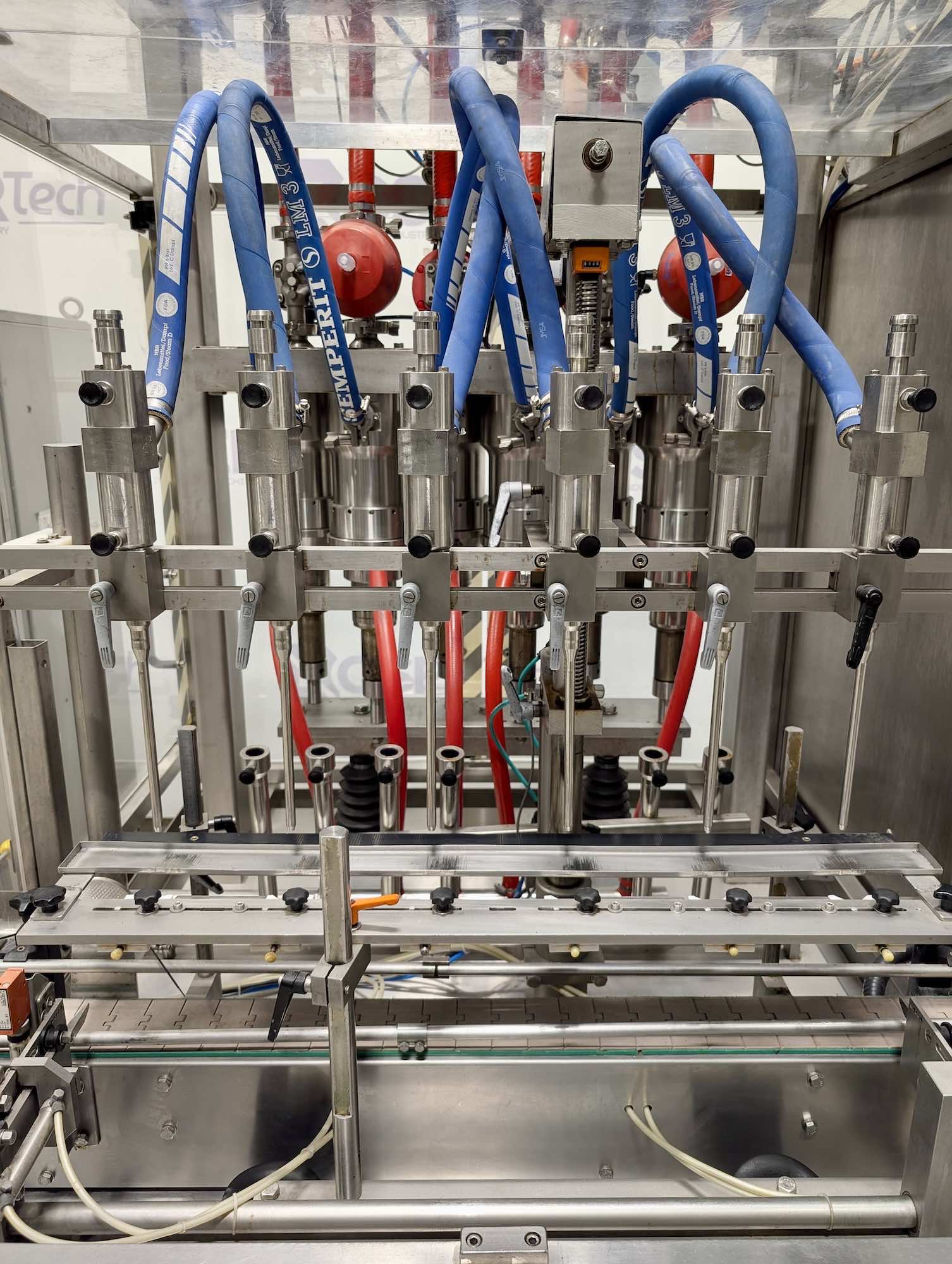

Linear dosing system with 6 stainless steel pistons

Filling point: 6 heads

Plunger filling head: yes

Volume: from 15 to 500 ml

Pistons replaced in 2012.

Filling accuracy: +/- 0.5% depending on the product

Product: liquid/semi-liquid for bottles, flasks, cans

Formats :

• ⌀ 41 to 115 mm
• Hauteur max : 320 mm
• Minimum internal diameter of opening: 5 mm

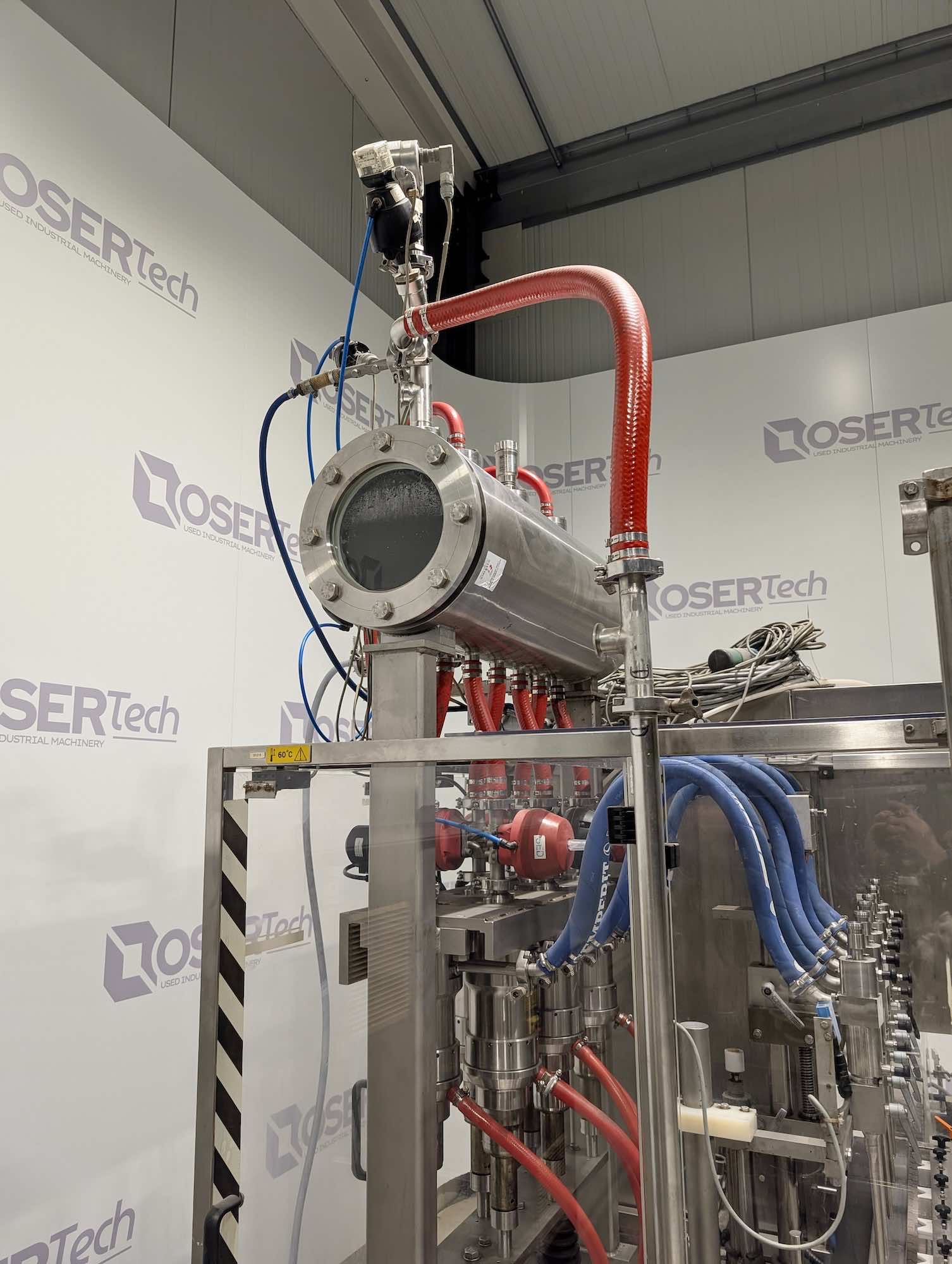

Closed hopper

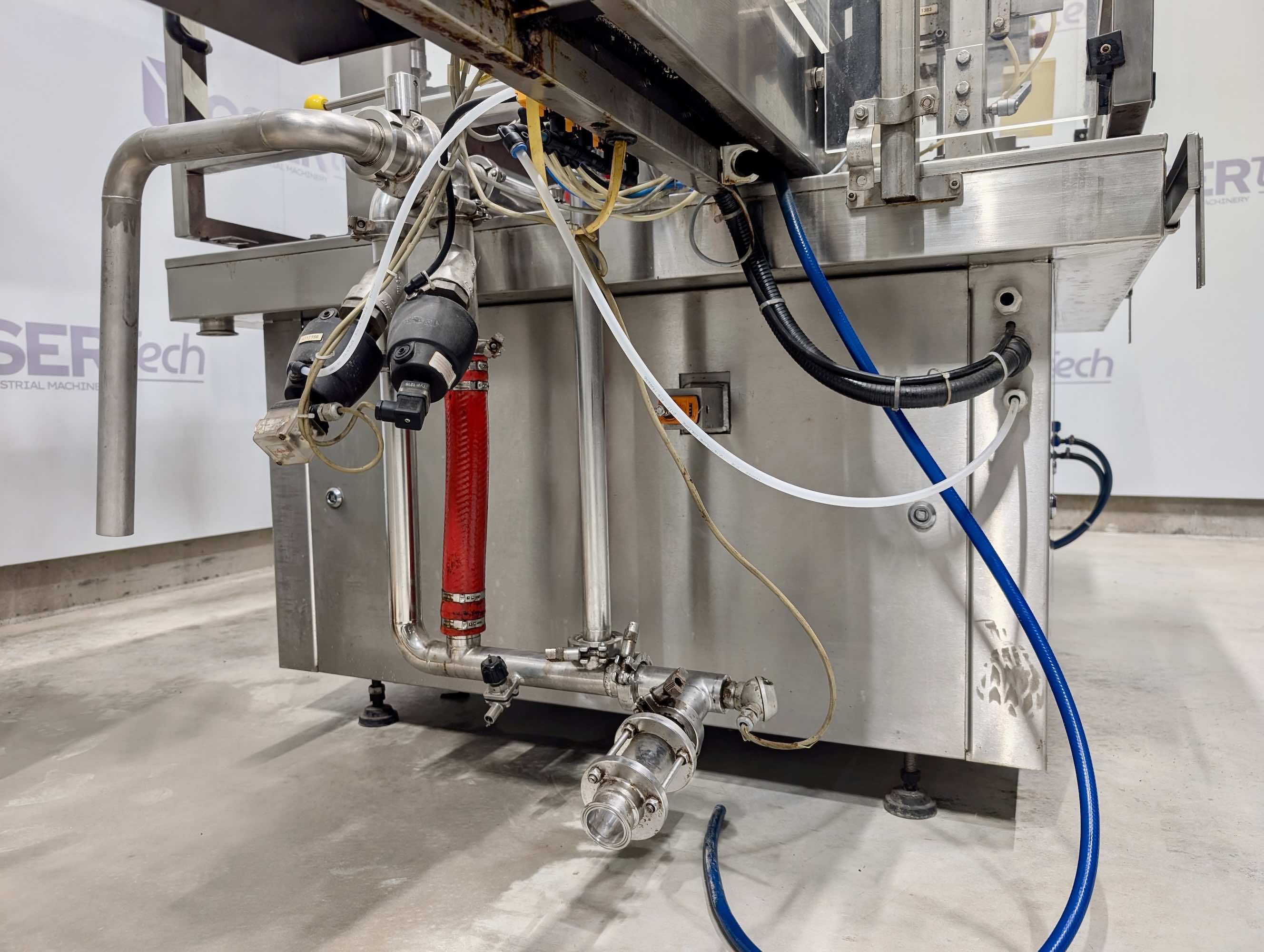

Clean-in-place (CIP) module

Maximum temperature: 60°C

Dimension : 400 x 150 x 320 cm

Weight : 2100 kg

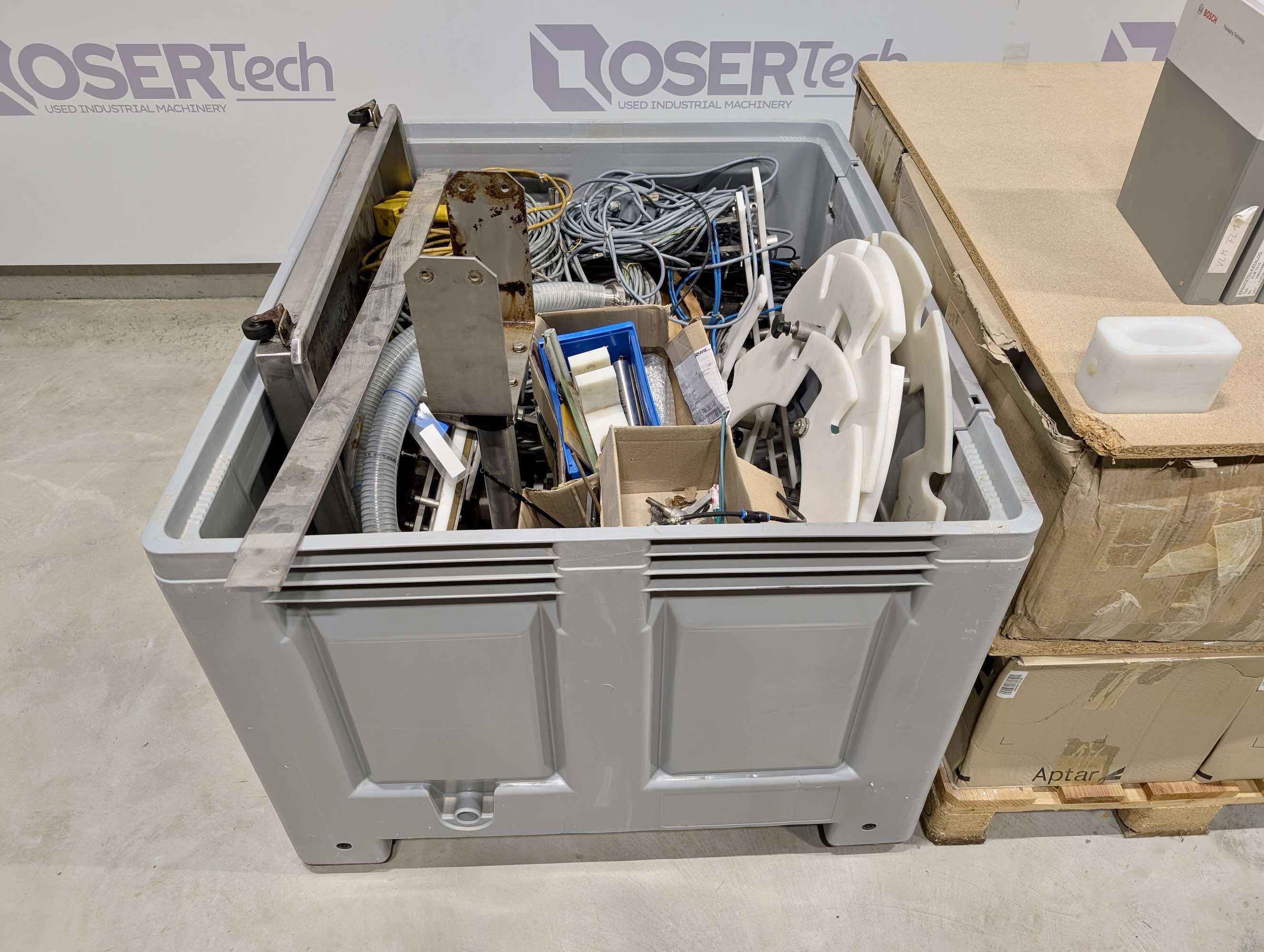

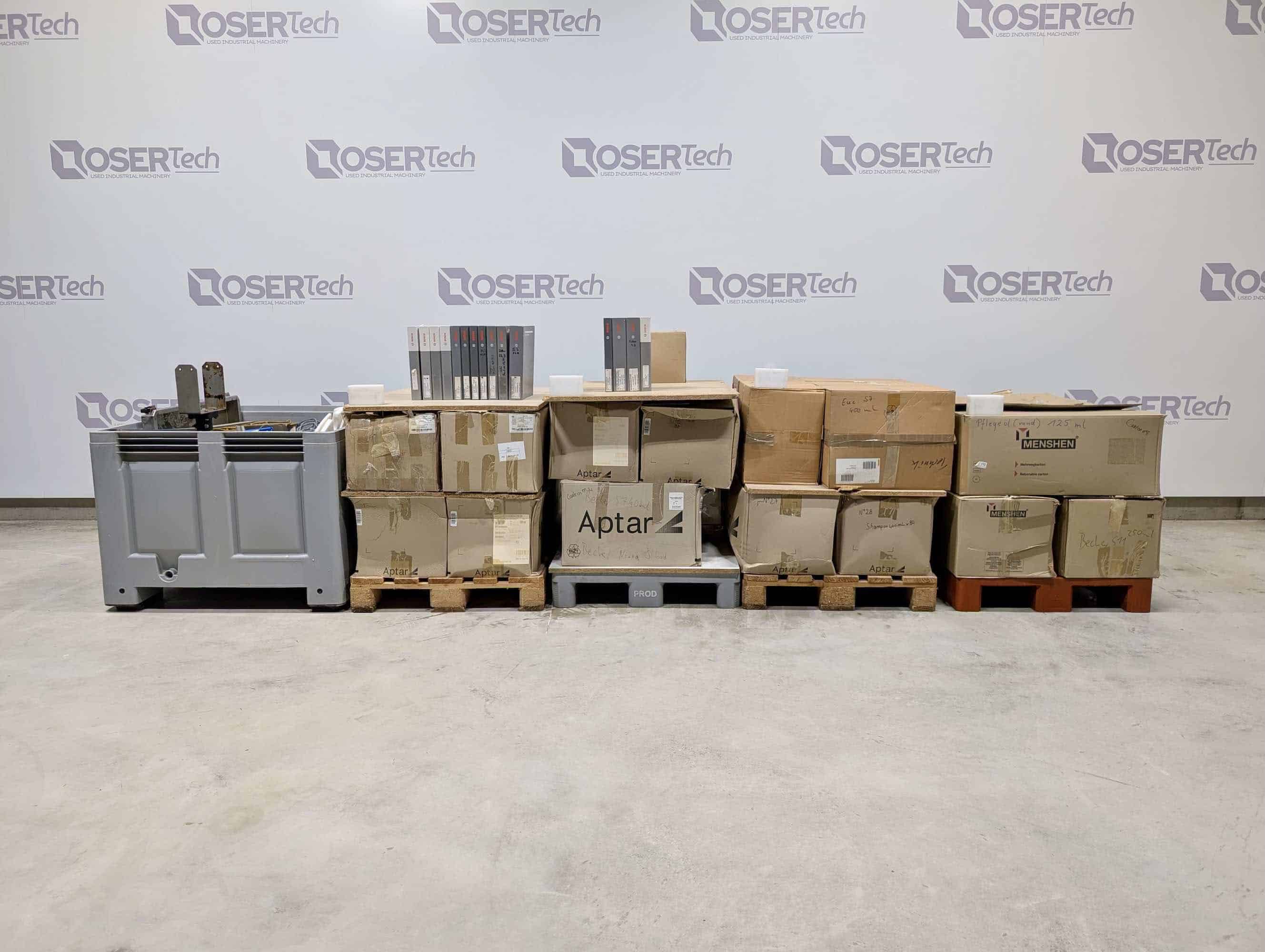

Several formats and spare parts available.

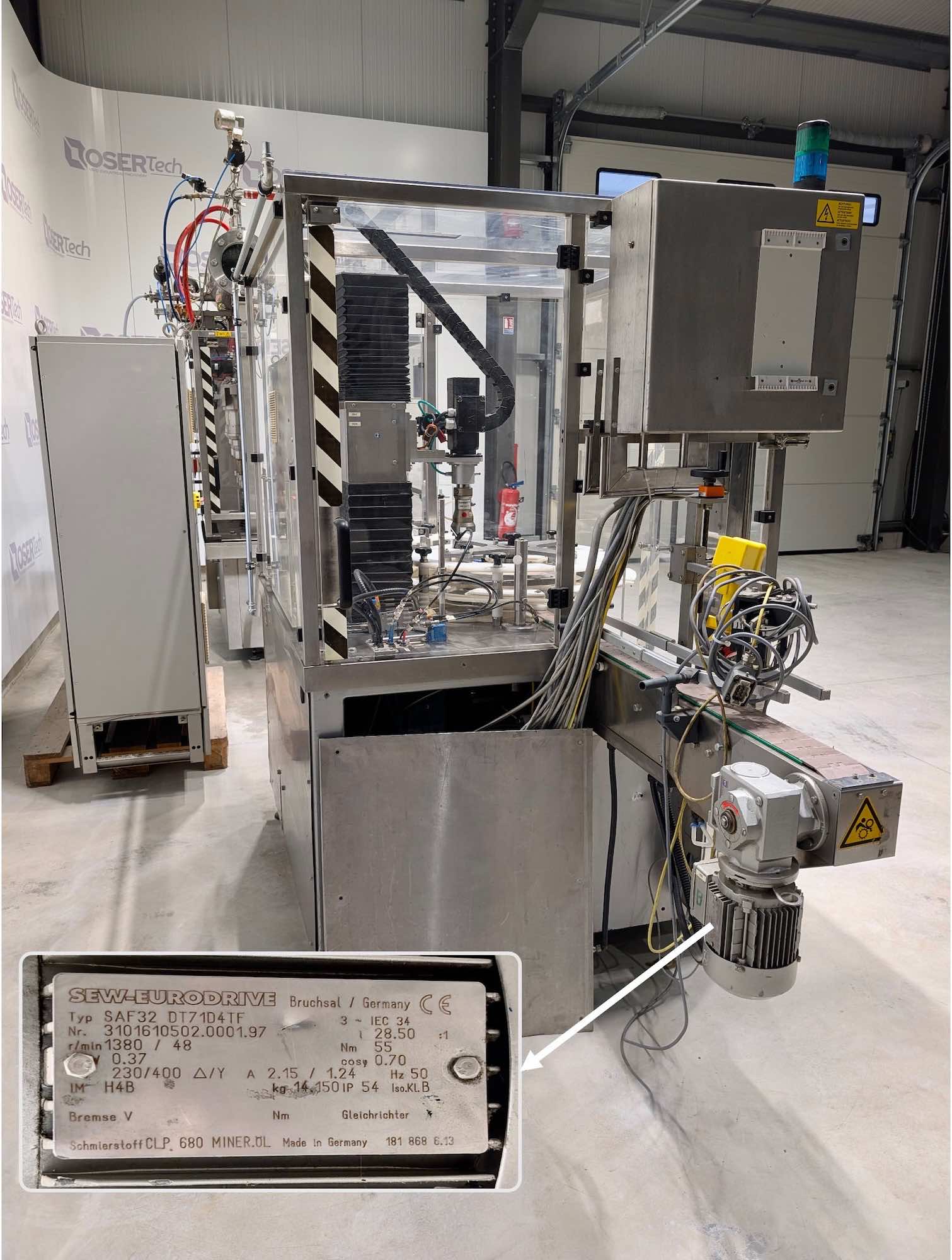

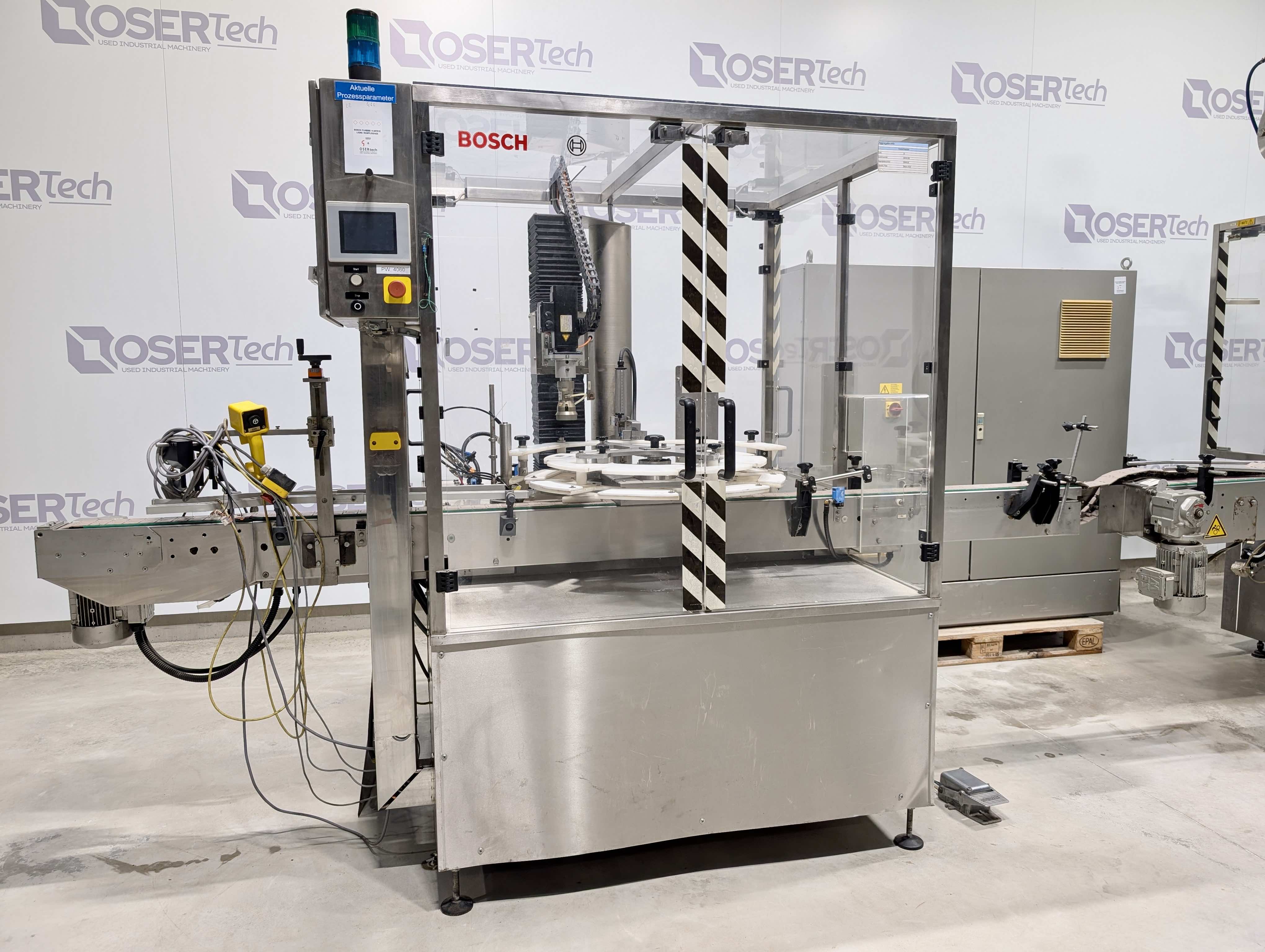

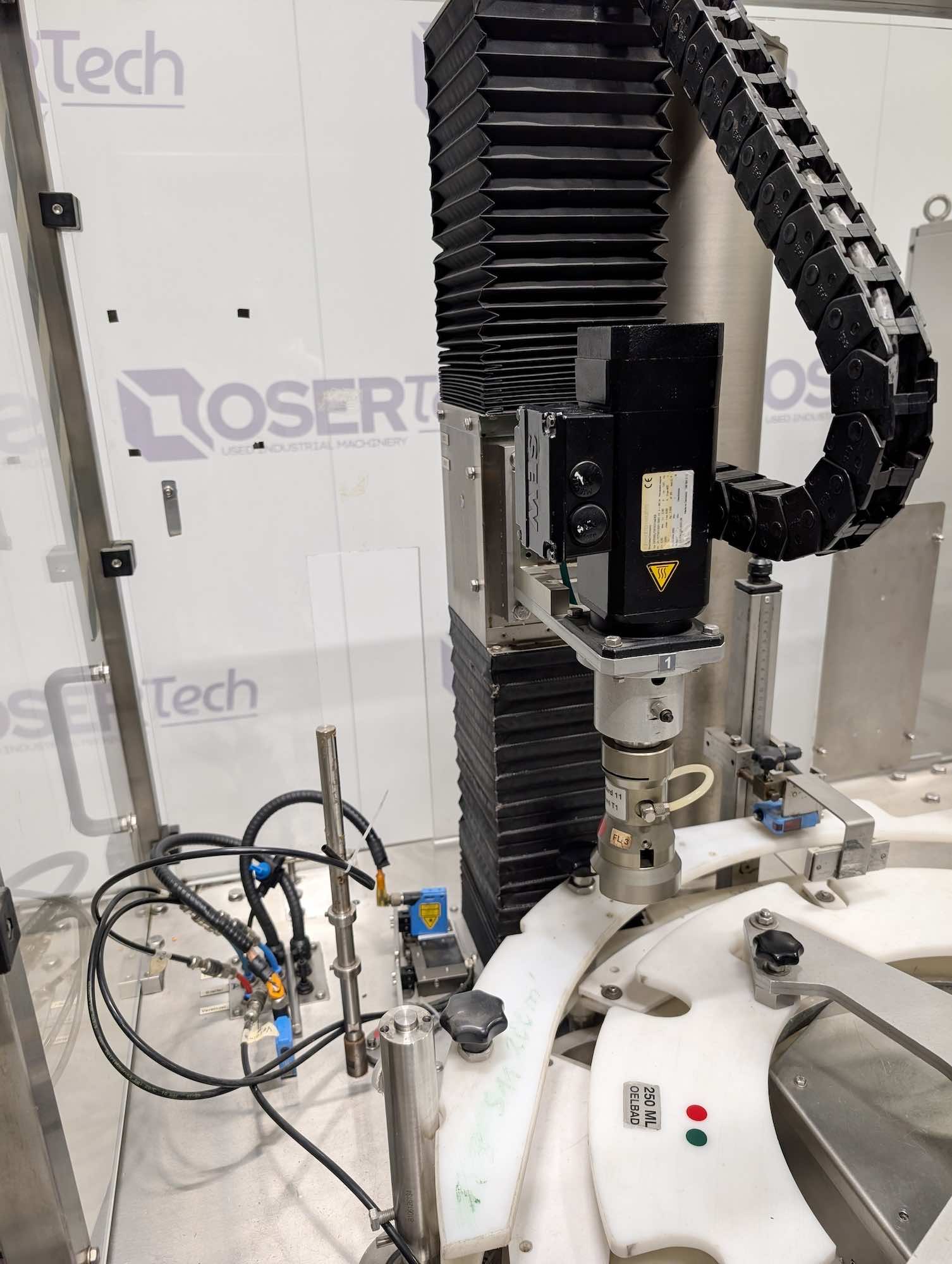

Capping/screwing machine:

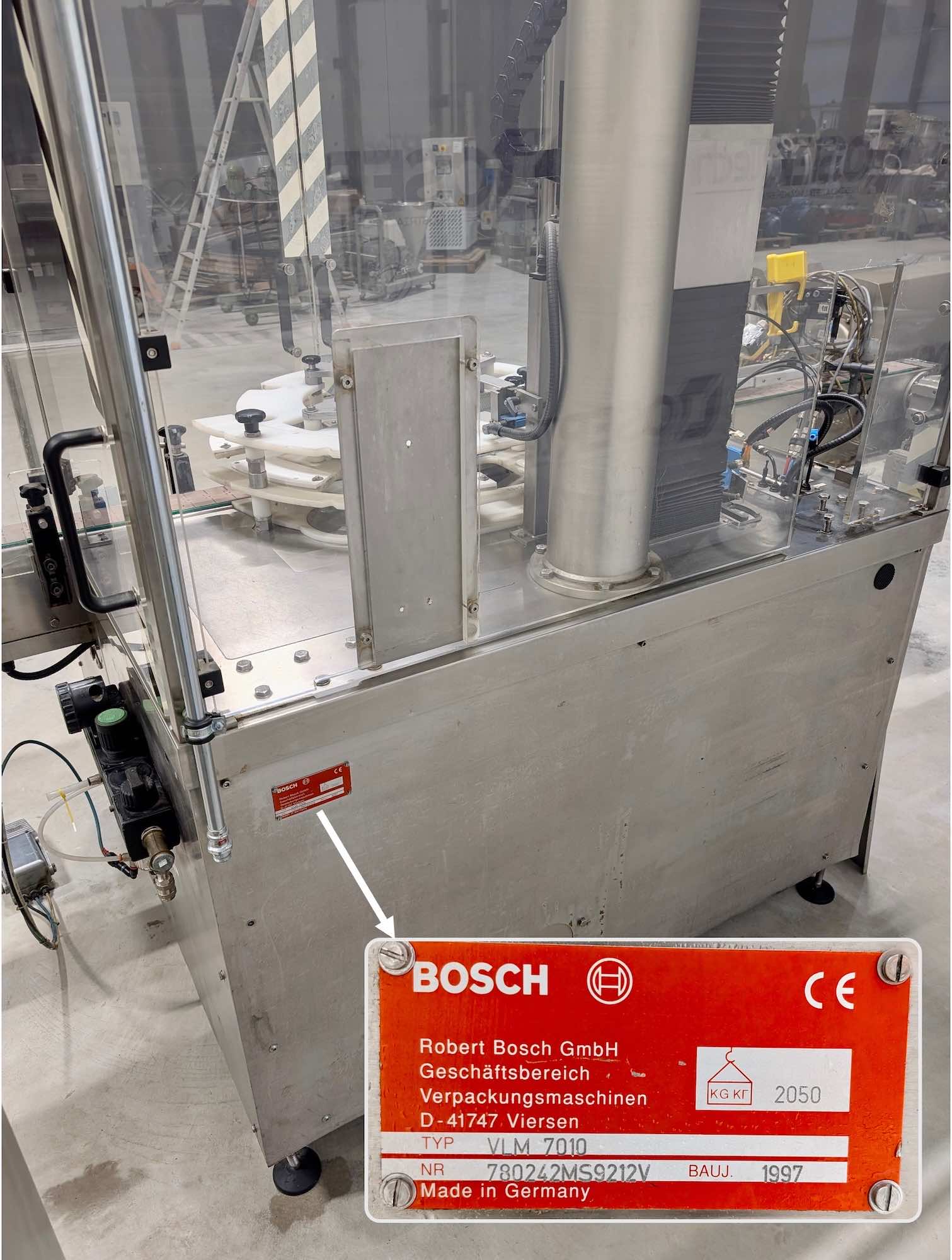

Model : VLM 7010

Year : 1997

Power : 10 kW

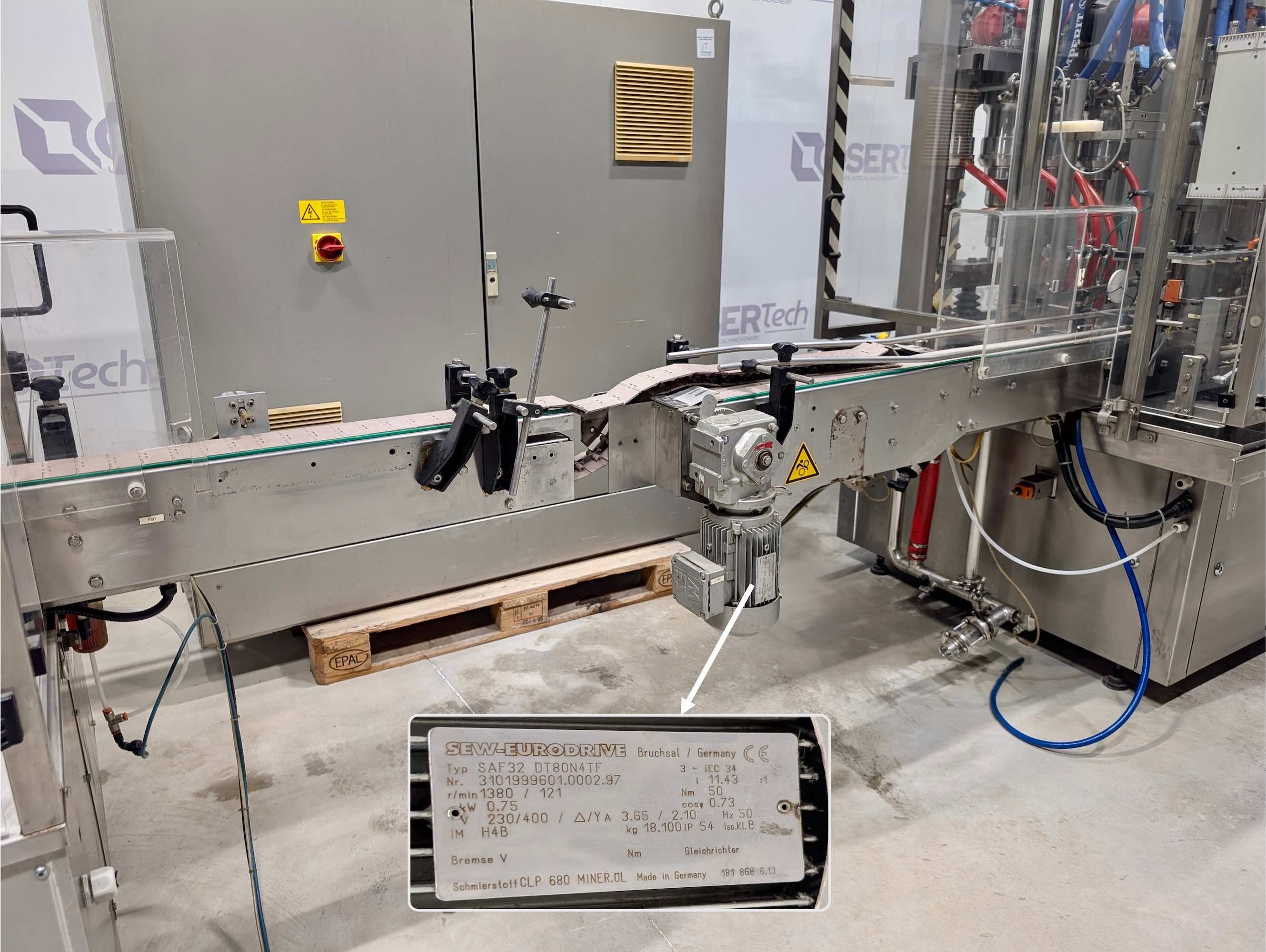

Transporting bottles by conveyor belt. Direction from right to left.

Screw, pressure or push-fit sealing system

Capacity : 60 units / min

Bottle dimensions:

• Width: 16 to 90 mm
• Length: 16 to 135 mm
• Height: 40 to 280 mm
• Diameter: 16 to 100 mm

Cap dimensions:

• screw cap:
  • Diameter : 16 à 60 mm
  • Height : 13 à 50 mm
  • Width: 16 to 60 mm
  • Length: 16 to 60 mm

• pressure cap:
  • Diameter : 16 à 60 mm
  • Height : 13 à 50 mm
  • Width: 16 to 60 mm
  • Length : 16 à 70 mm

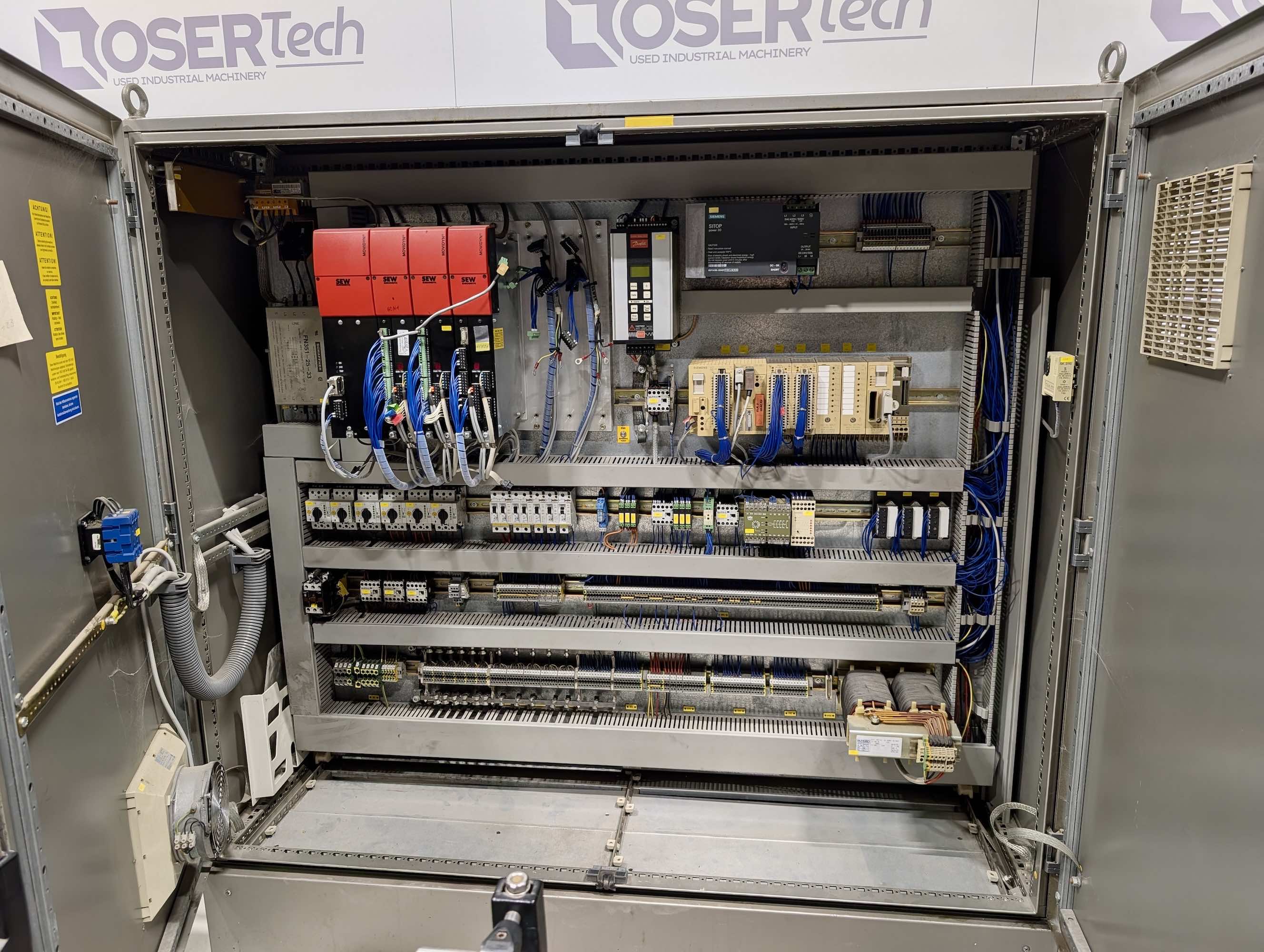

Machine dimensions: 400 x 130 x 200 cm (+ electrical cabinet 160 x 50 x 170 cm)

Weight : 2050 kg
