Gerteis Mini Pactor 250/25 – Roller compactor

Manufacturer: Gerteis

Model: GMP POLYGRAN – Mini Pactor 250/25/3

Year: 2001

Type: Roller compactor

Application: dry granulation in pharmaceutical environments

Hopper agitator speed: 0 – 40 rpm > typical value: 4 rpm

Feed screw speed: 0 – 750 rpm > typical value: 60 rpm

Compression screw speed: 0 – 750 rpm > typical value: 80 rpm

Compressive force: 1 – 20 kN/cm > normal value: 10 kN/cm

Gap width / spacing: 0.8 – 6.0 mm > normal value: 3 mm

Roller speed: 0 – 30 rpm > normal value: 10 rpm

Pelletizer speed: 0 – 180 rpm > normal value: 60 rpm

Capacity: 15 – 100 kg / hour > normal value: 50 Kg / H

Pressure maintenance: hydraulic

Brushless motor with servomotor

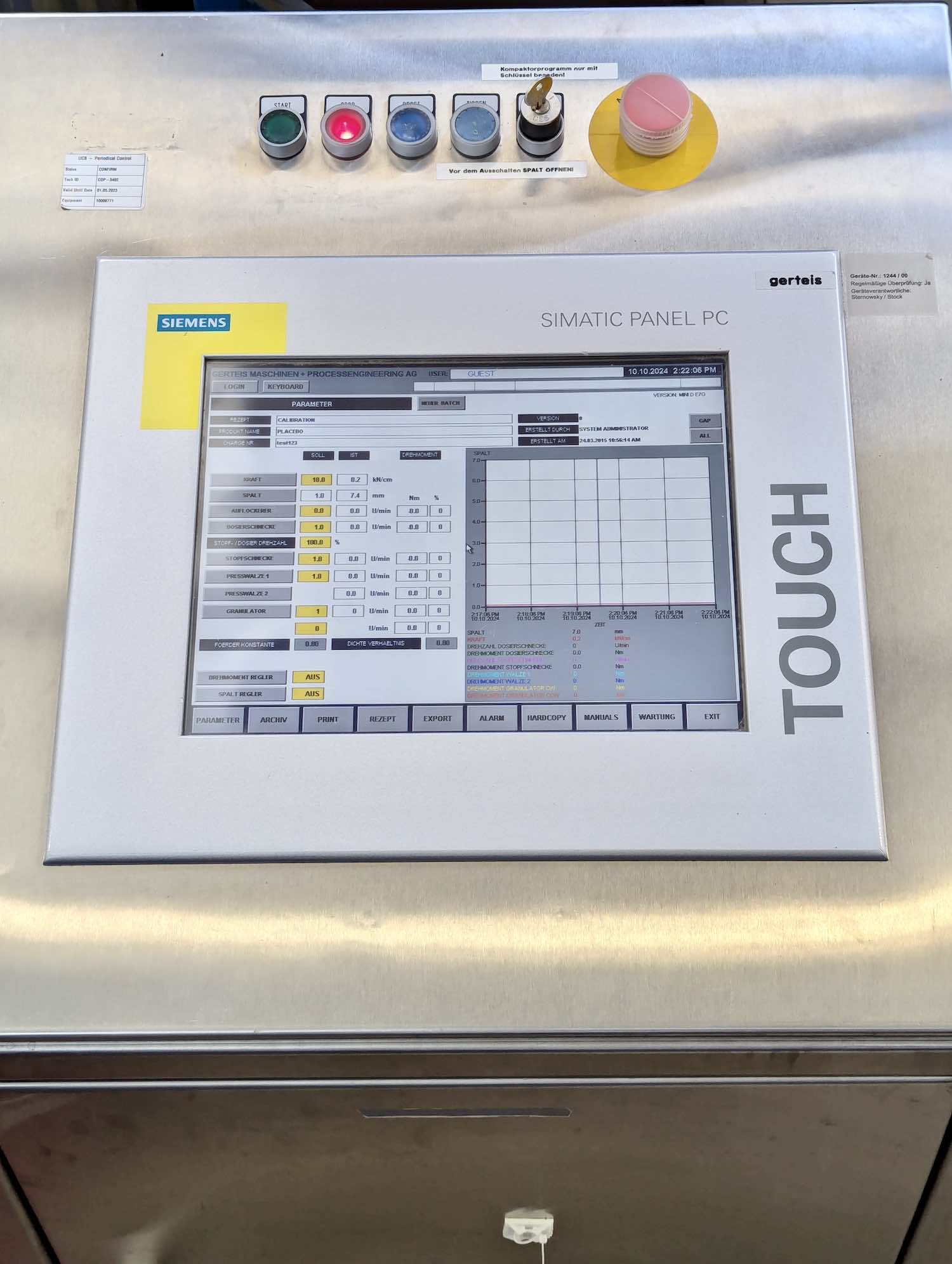

Remote control panel

Tools for disassembly / reassembly

Support cart for transporting mechanical parts

Sold with two sets of rollers (smooth and engraved) and two pelletizing rotors (star and rotor with pre-crusher).

Inverter and printer

Complete digital documentation
