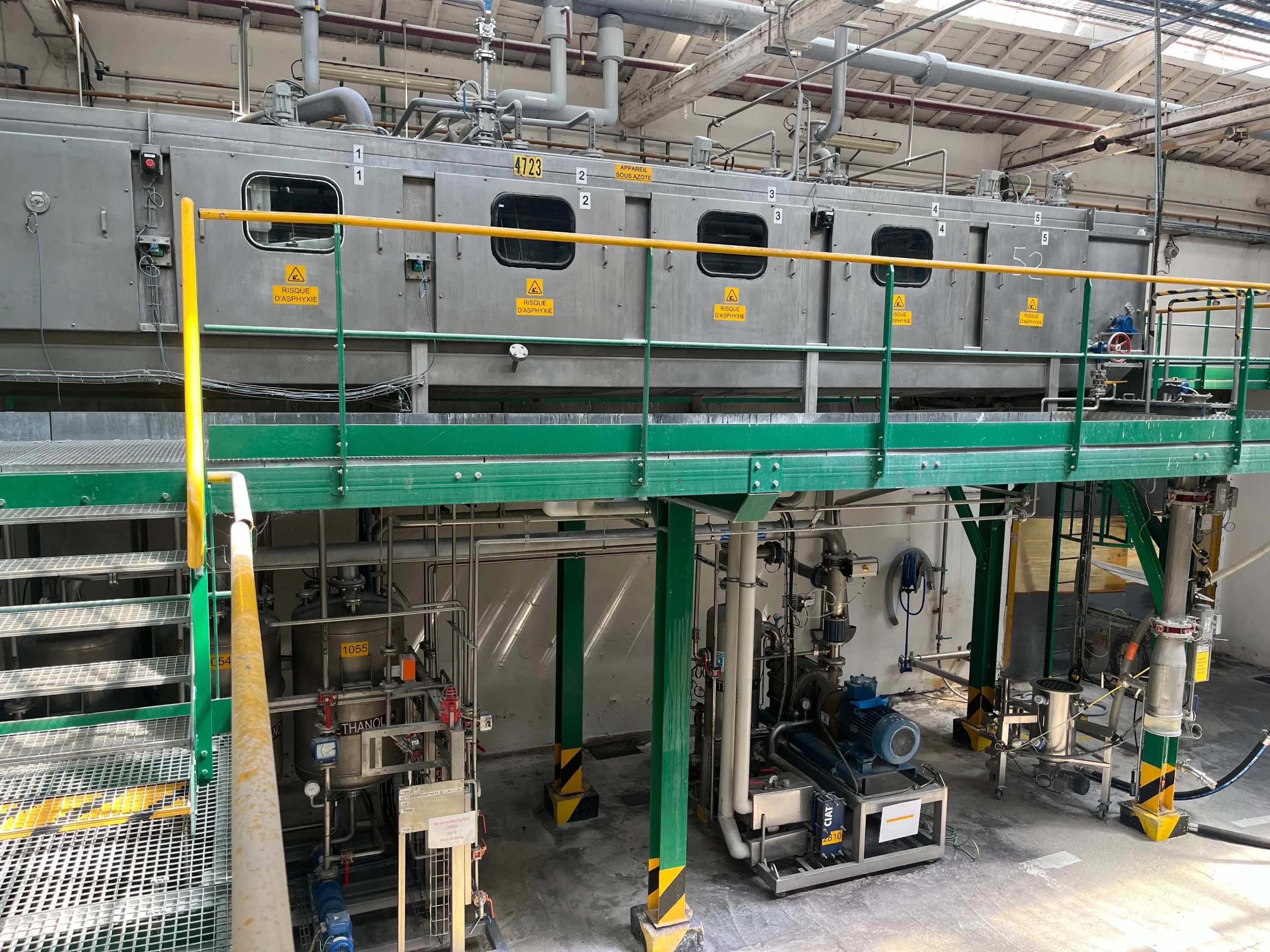

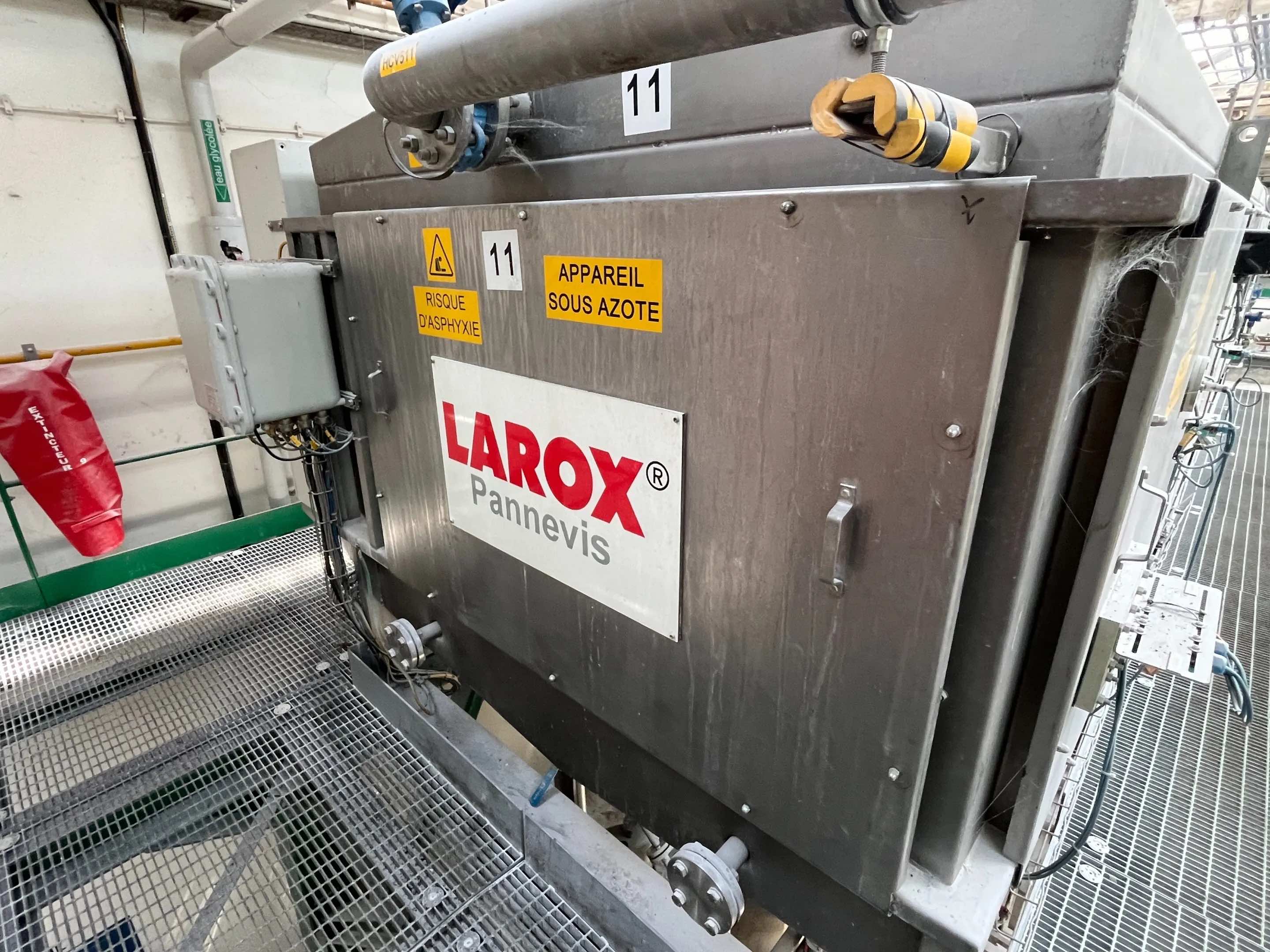

Larox Pannevis FT 1150 – Vacuum belt filter

Larox / Pannevis (Larox B.V.) - RT®/FT 1,15 x 5,6 m
Larox / Pannevis (Larox B.V.) - RT®/FT 1,15 x 5,6 m
Larox / Pannevis (Larox B.V.) - RT®/FT 1,15 x 5,6 m
Larox / Pannevis (Larox B.V.) - RT®/FT 1,15 x 5,6 m
Larox / Pannevis (Larox B.V.) - RT®/FT 1,15 x 5,6 m
Larox / Pannevis (Larox B.V.) - RT®/FT 1,15 x 5,6 m
Larox / Pannevis (Larox B.V.) - RT®/FT 1,15 x 5,6 m
Larox / Pannevis (Larox B.V.) - RT®/FT 1,15 x 5,6 m
Larox / Pannevis (Larox B.V.) - RT®/FT 1,15 x 5,6 m
Larox / Pannevis (Larox B.V.) - RT®/FT 1,15 x 5,6 m
Larox / Pannevis (Larox B.V.) - RT®/FT 1,15 x 5,6 m
Larox / Pannevis (Larox B.V.) - RT®/FT 1,15 x 5,6 m
Larox / Pannevis (Larox B.V.) - RT®/FT 1,15 x 5,6 m
Larox / Pannevis (Larox B.V.) - RT®/FT 1,15 x 5,6 m
Larox / Pannevis (Larox B.V.) - RT®/FT 1,15 x 5,6 m
Contact information :
Language preference :
Your request:
Please enter your questions here. Please tell us about your project or requirements. We will contact you as soon as possible.
Download PDF
Arrange a call
Larox / Pannevis (Larox B.V.) - RT®/FT 1,15 x 5,6 m
Larox / Pannevis (Larox B.V.) - RT®/FT 1,15 x 5,6 m
Larox / Pannevis (Larox B.V.) - RT®/FT 1,15 x 5,6 m
Larox / Pannevis (Larox B.V.) - RT®/FT 1,15 x 5,6 m
Larox / Pannevis (Larox B.V.) - RT®/FT 1,15 x 5,6 m
Larox / Pannevis (Larox B.V.) - RT®/FT 1,15 x 5,6 m
Larox / Pannevis (Larox B.V.) - RT®/FT 1,15 x 5,6 m
Larox / Pannevis (Larox B.V.) - RT®/FT 1,15 x 5,6 m
Larox / Pannevis (Larox B.V.) - RT®/FT 1,15 x 5,6 m
Larox / Pannevis (Larox B.V.) - RT®/FT 1,15 x 5,6 m
Larox / Pannevis (Larox B.V.) - RT®/FT 1,15 x 5,6 m
Larox / Pannevis (Larox B.V.) - RT®/FT 1,15 x 5,6 m
Larox / Pannevis (Larox B.V.) - RT®/FT 1,15 x 5,6 m
Larox / Pannevis (Larox B.V.) - RT®/FT 1,15 x 5,6 m
  • REFERENCE : 12262
  • CAT :

TECHNICAL INFORMATION

// Equipment dismantled and stored in our warehouse //

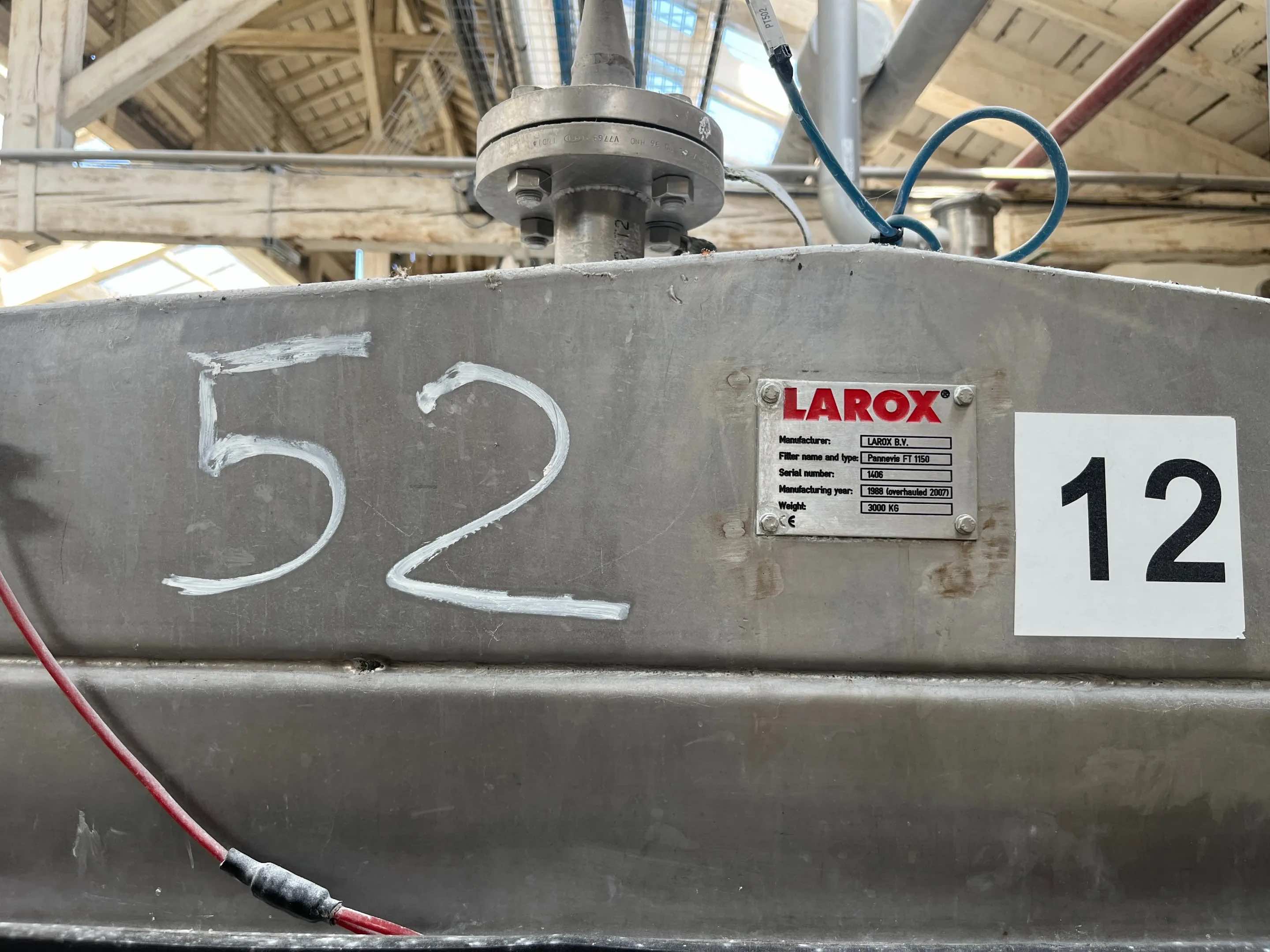

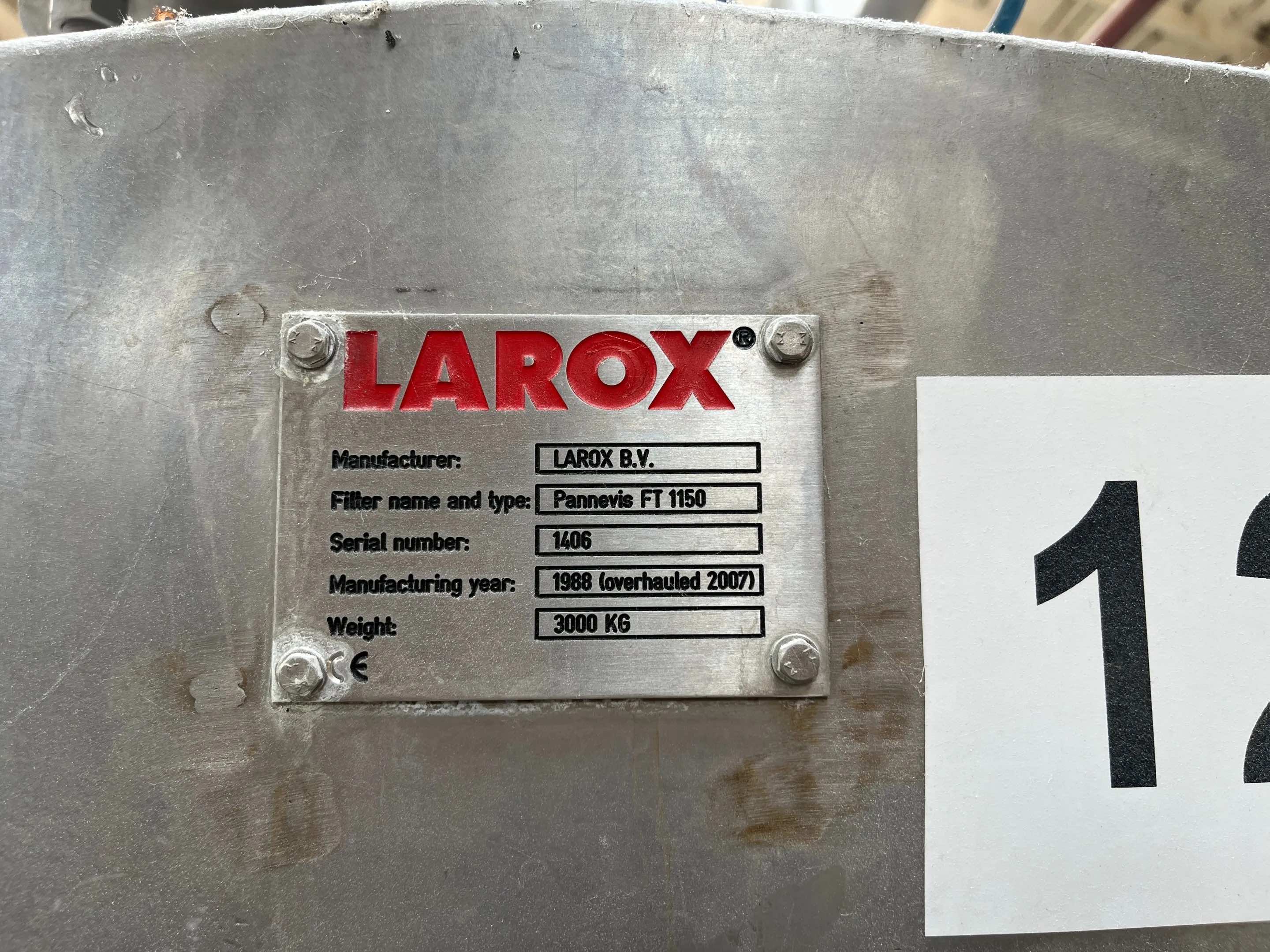

Manufacturer: Larox / Pannevis (Larox B.V.)
Model: RT®/FT 1.15 x 5.6 m

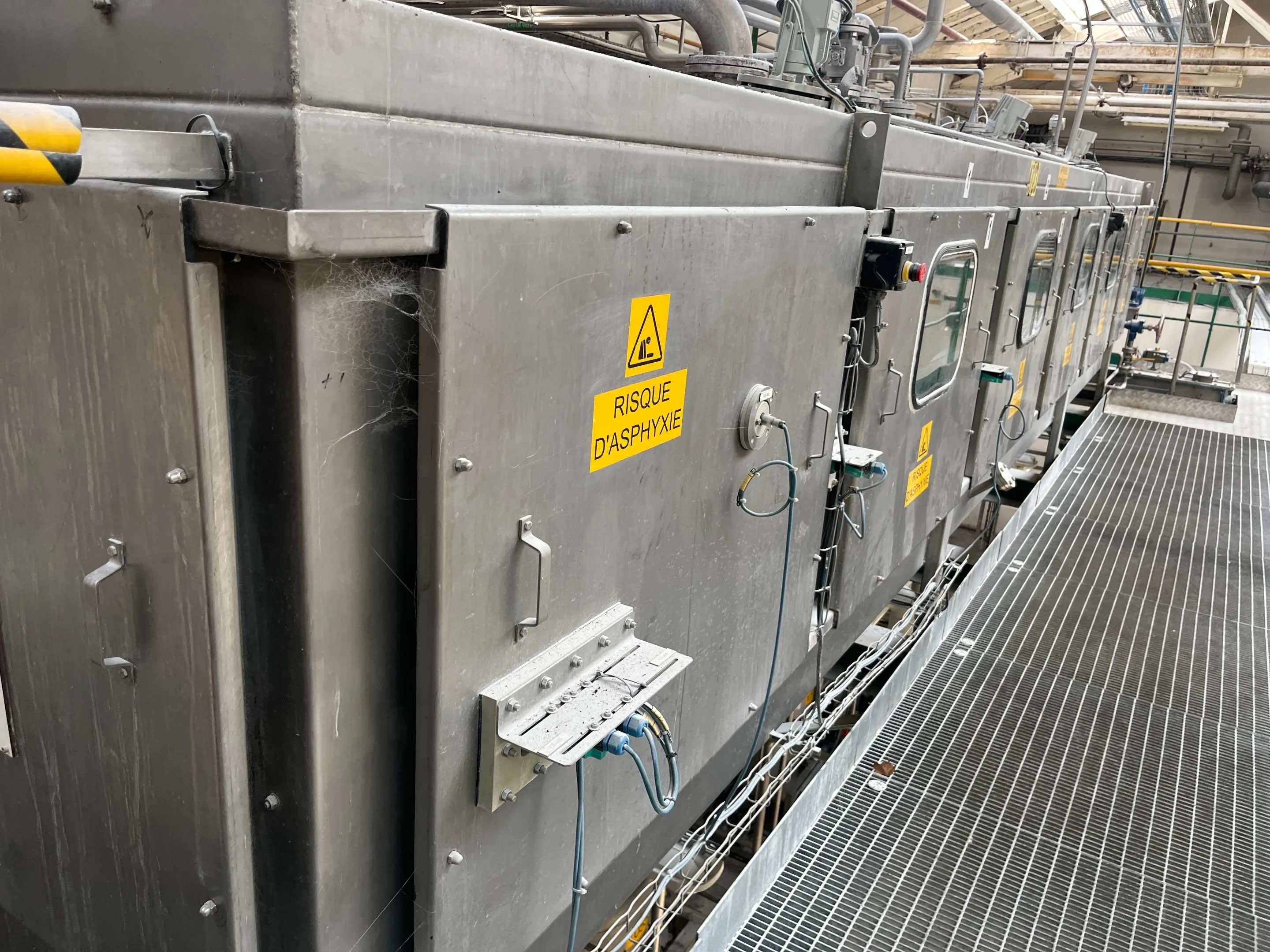

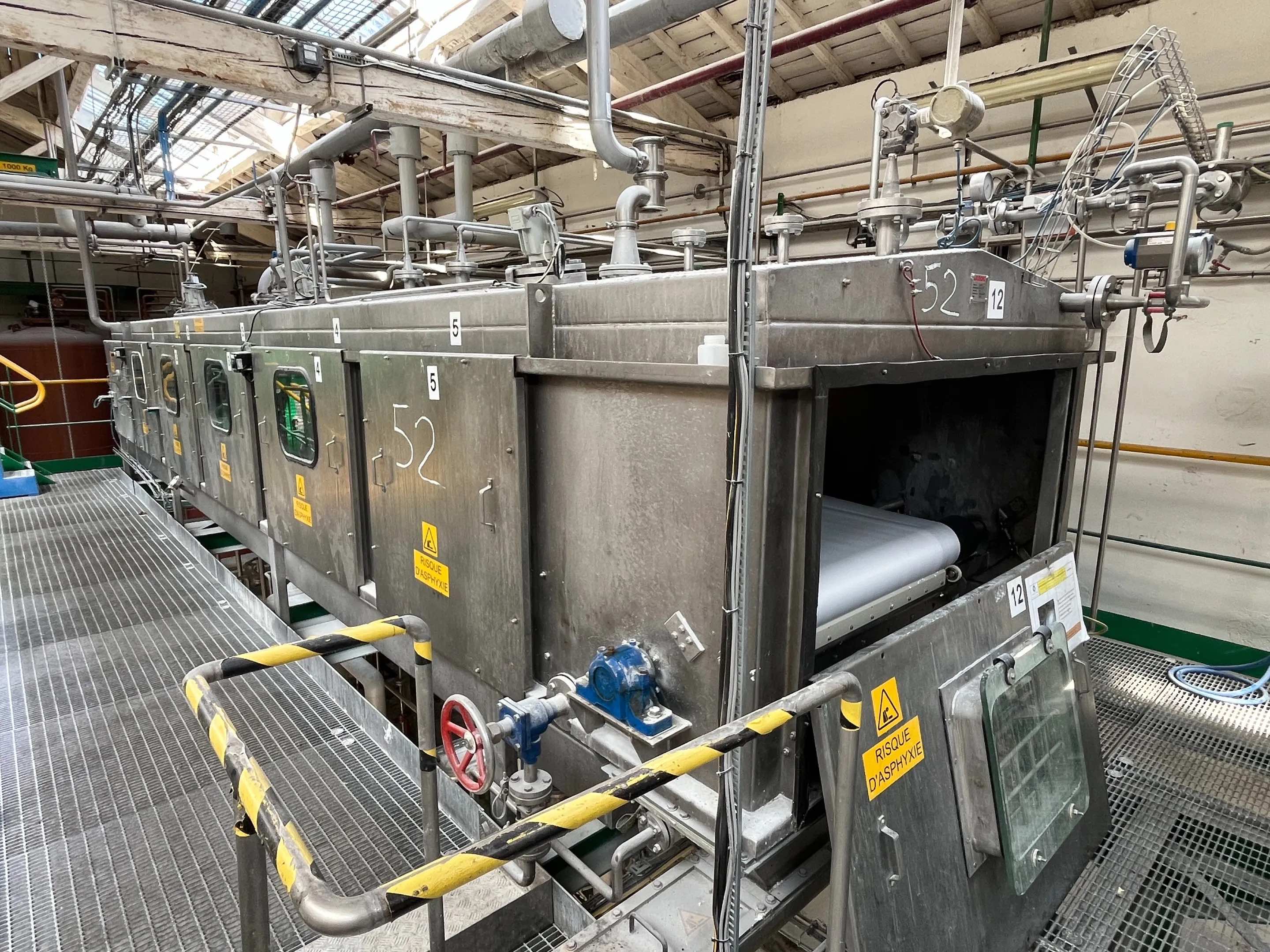

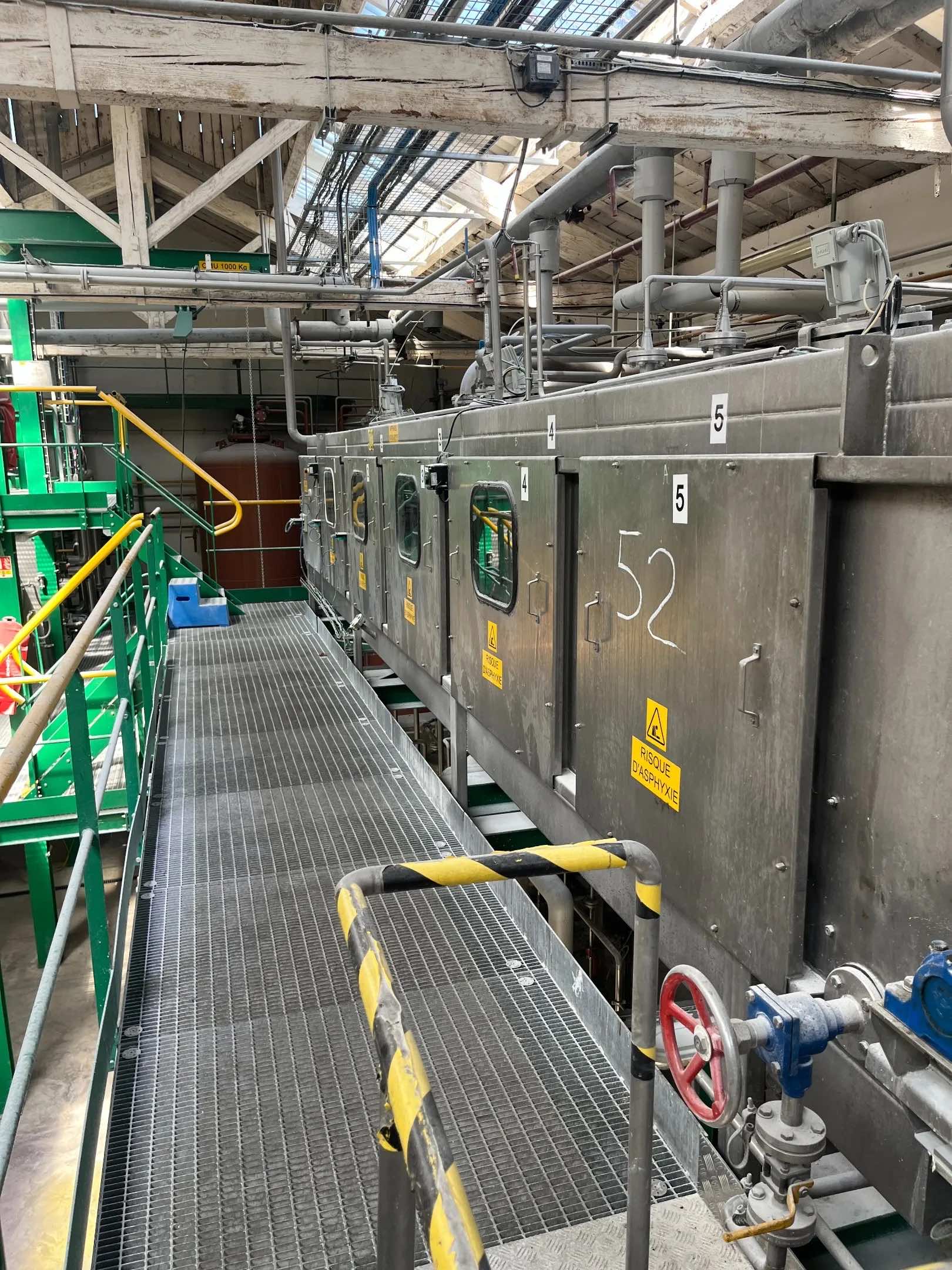

Type: Vacuum belt filter
Year: 2008 (1988 version refurbished)

Application: Liquid/solid separation, with cake drying and filtrate recovery.
FT = Fume-Tight
Materials: stainless steel

Filter area: 6.4 m²

Cake cleaning:
– Option to perform several washing stages, with each filtrate collected in its own receiver (purity up to 99.99% or more) with low washing water consumption.
– Backwashing
Repositioning of the tray and support grids at each retraction
Operation/power supply: continuous

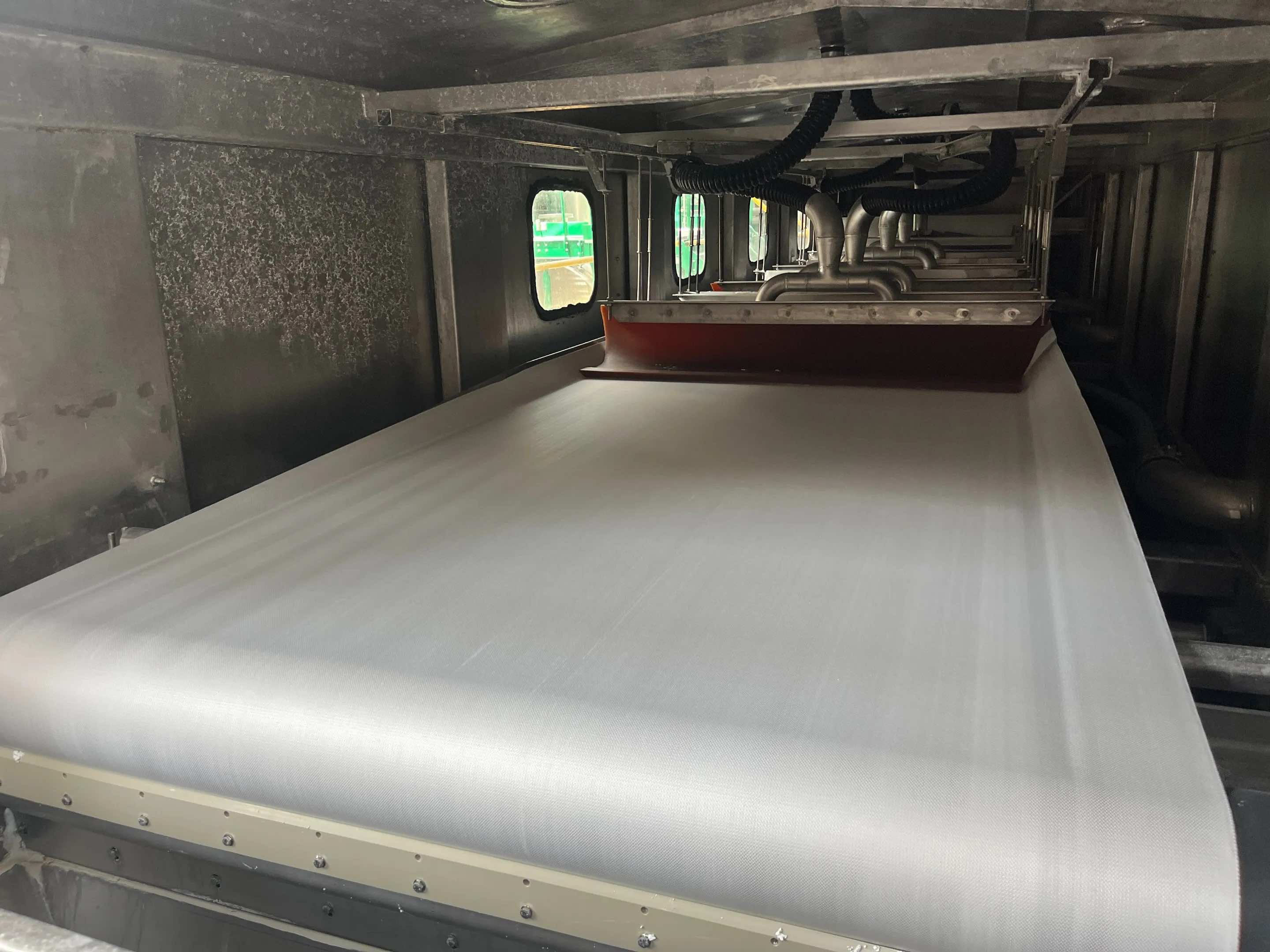

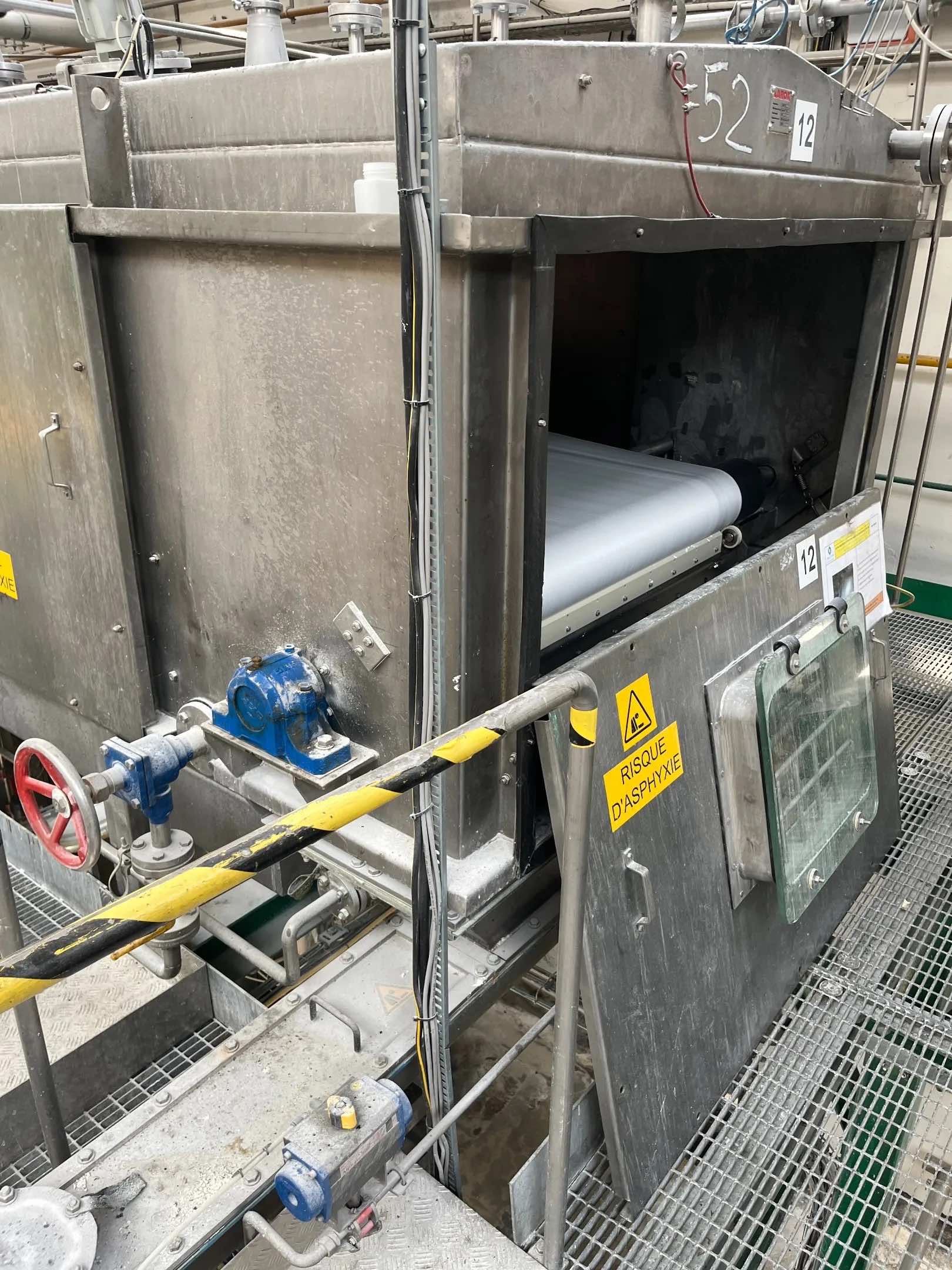

Continuously washed filter cloth
Cloth orientation and tensioner
Extraction screw

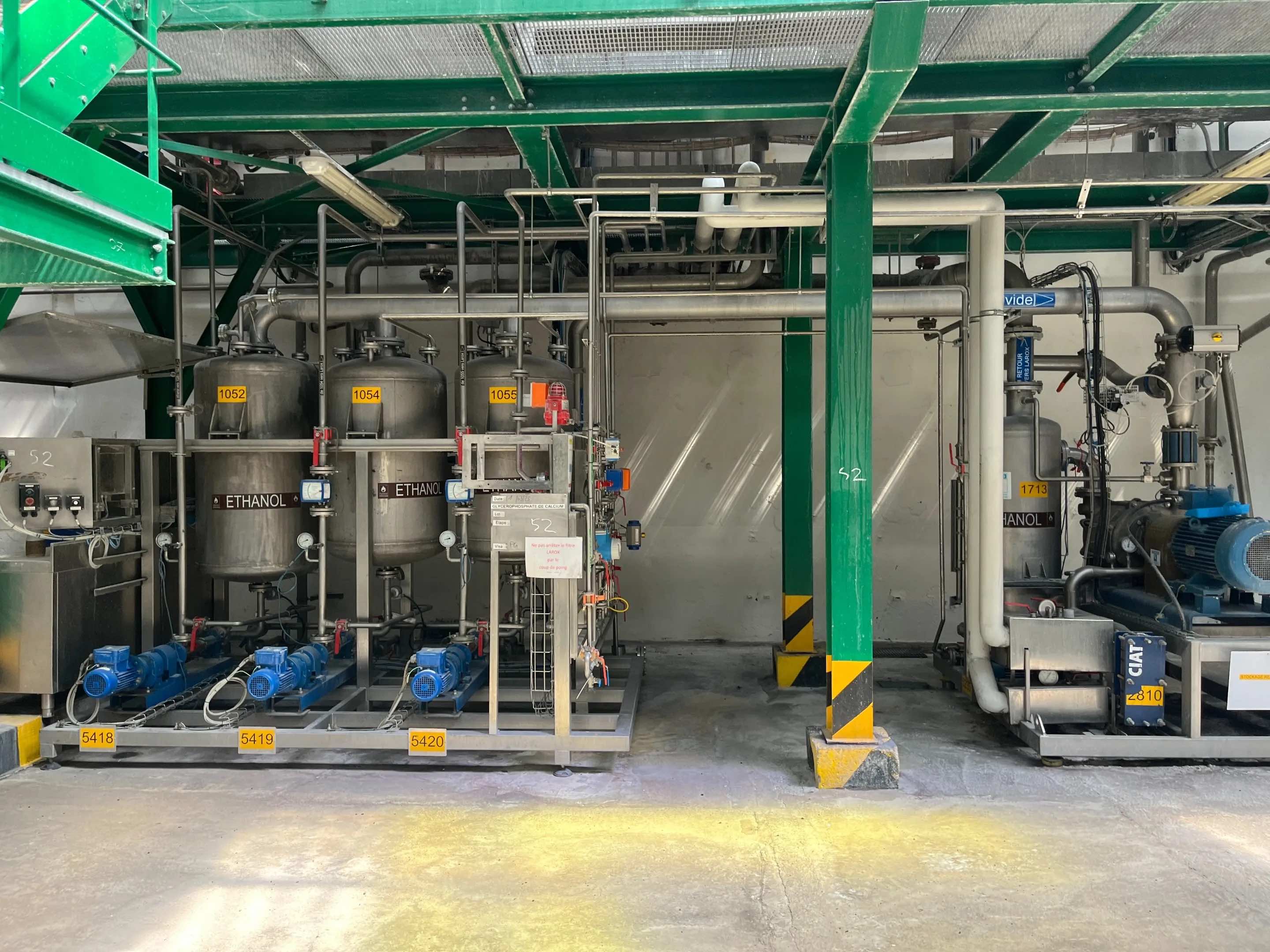

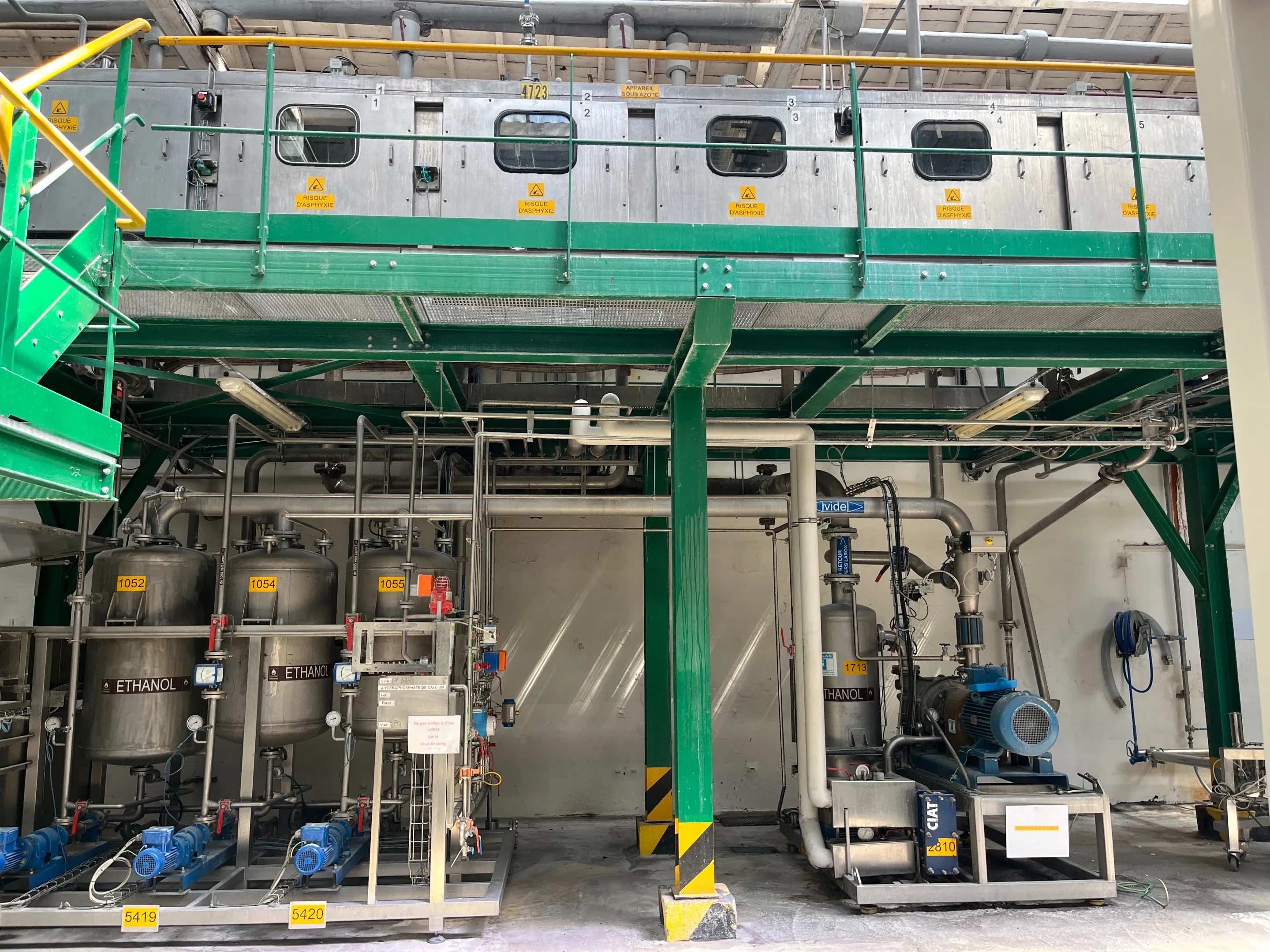

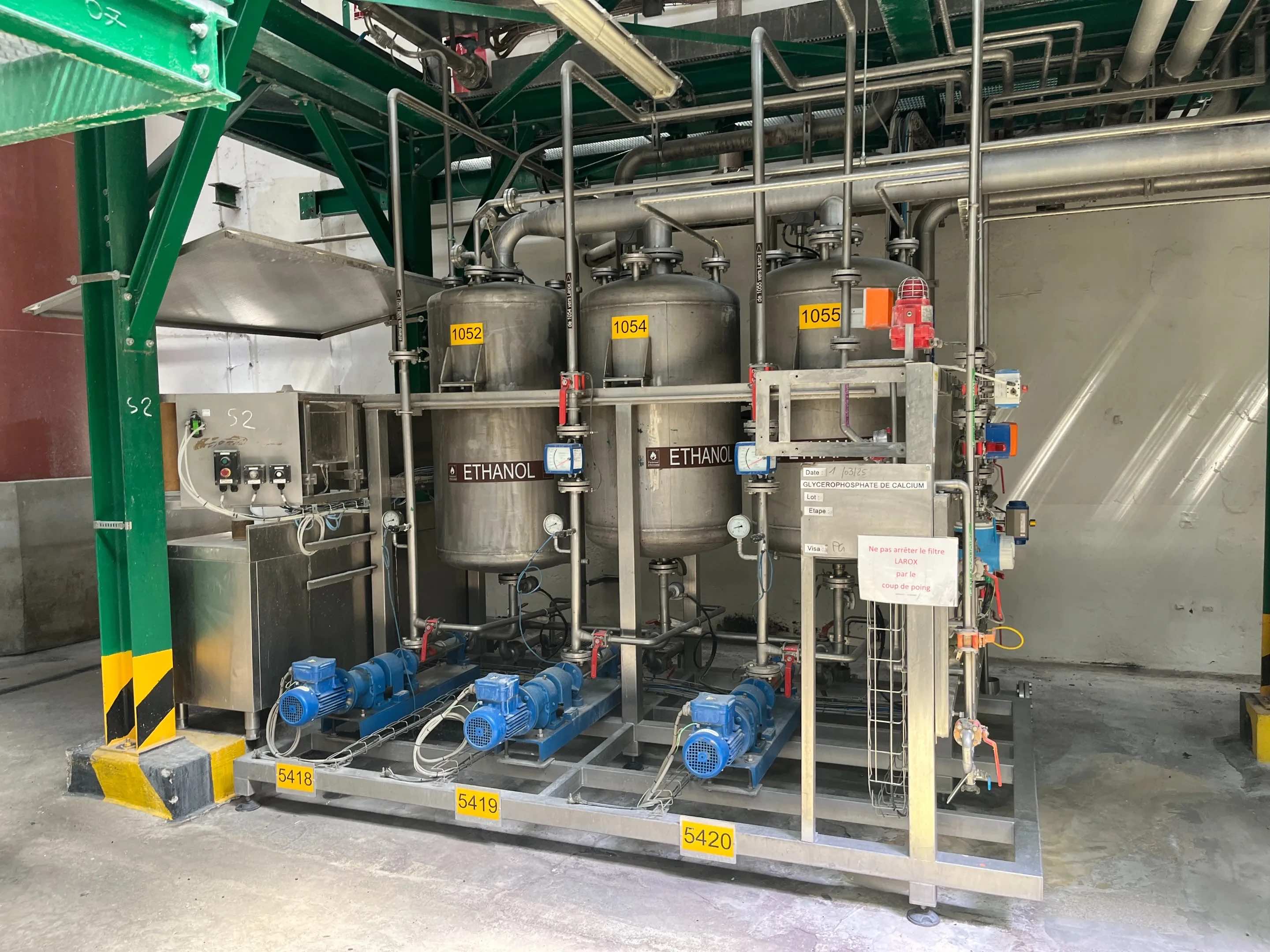

Skid with 3 filtration tanks and circulation pumps

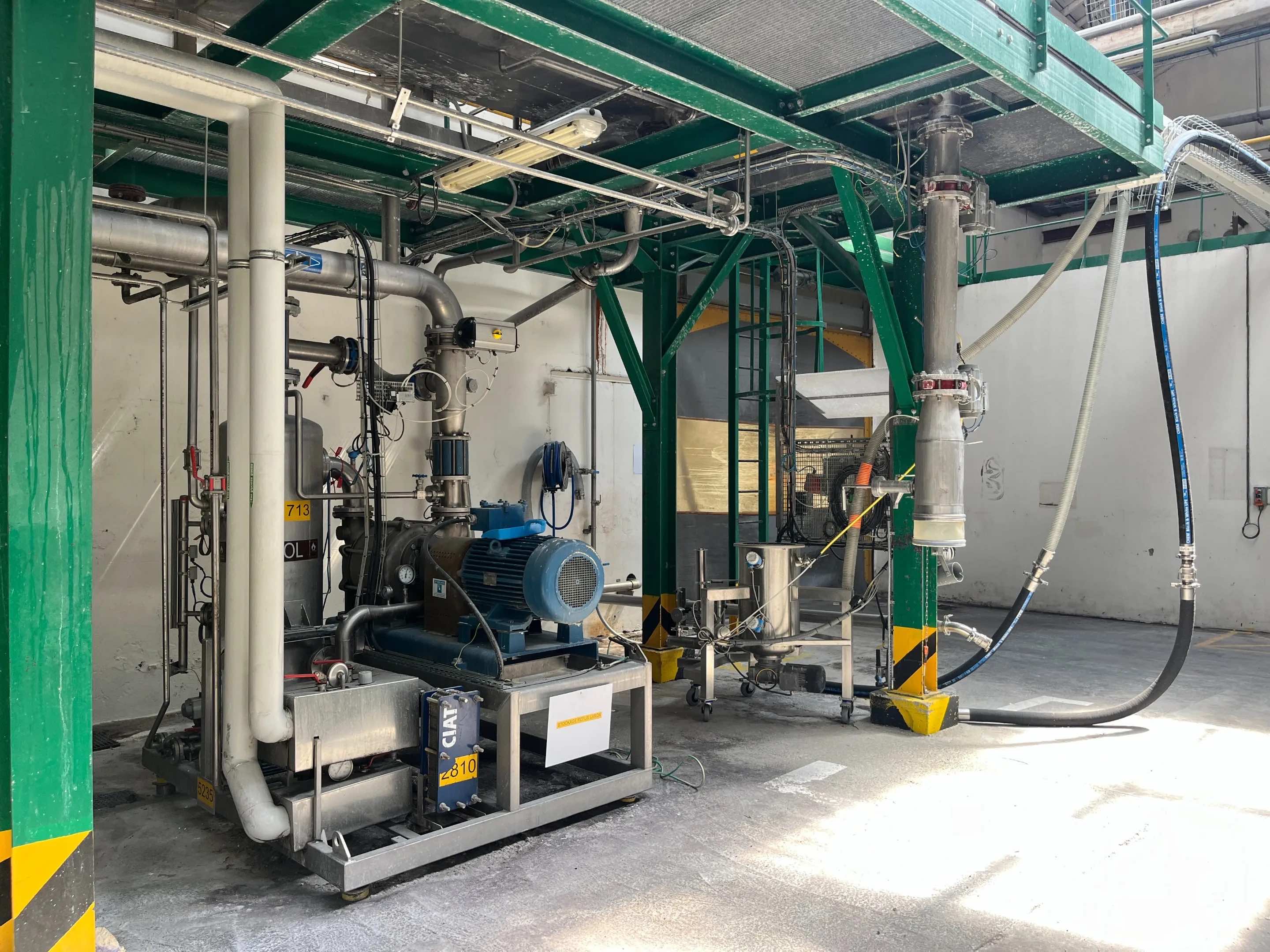

Vacuum pump skid:
– Sihi Sterling LPHA 70123 (Atex) – Liquid ring: ethanol – 855 m³/h – 21.83 KW
– Heat exchanger
– Recirculation pump
– Separator tank

Main machine weight: 3000 kg
Main machine length: 913 cm

Full technical documentation (paper and digital versions)
Electrical cabinet
