TECHNICAL INFORMATION

Manufacturer: Gerteis
Model: GMP-Polygran Macro Pactor 250/100/3
Year: 2004

Type: roller compactor, granulation unit for the pharmaceutical industry.

Feeding screw
Tamping screw

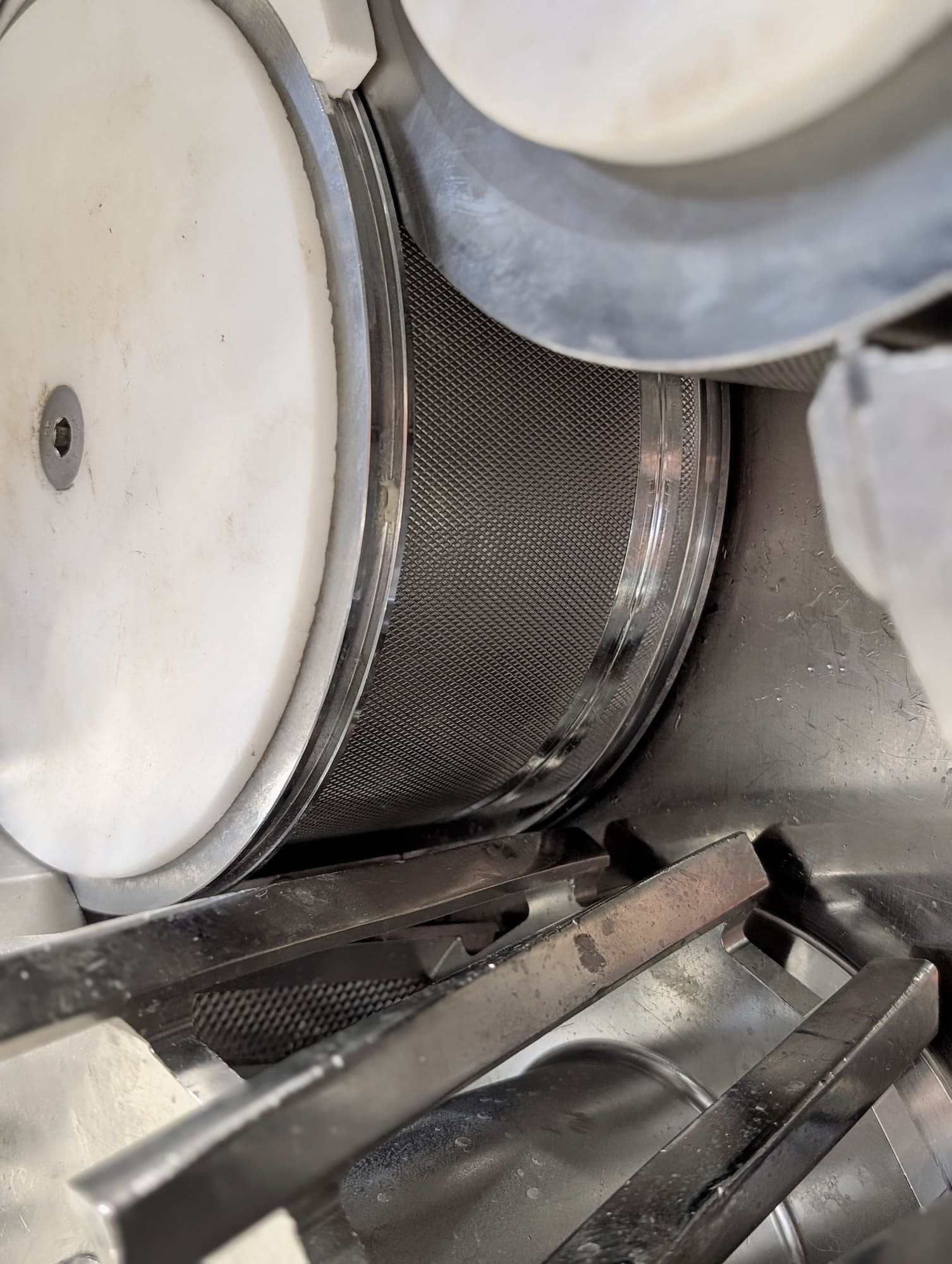

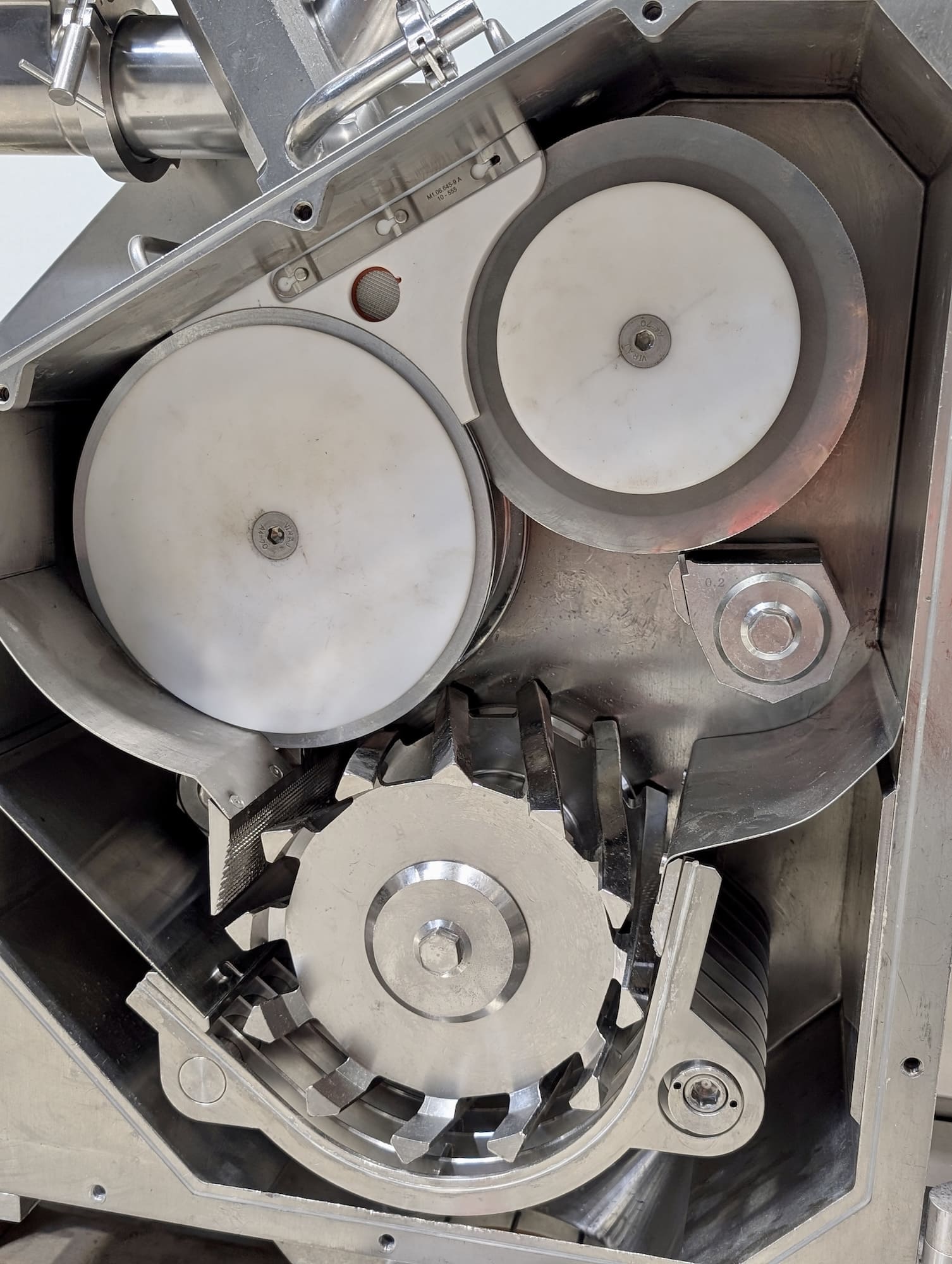

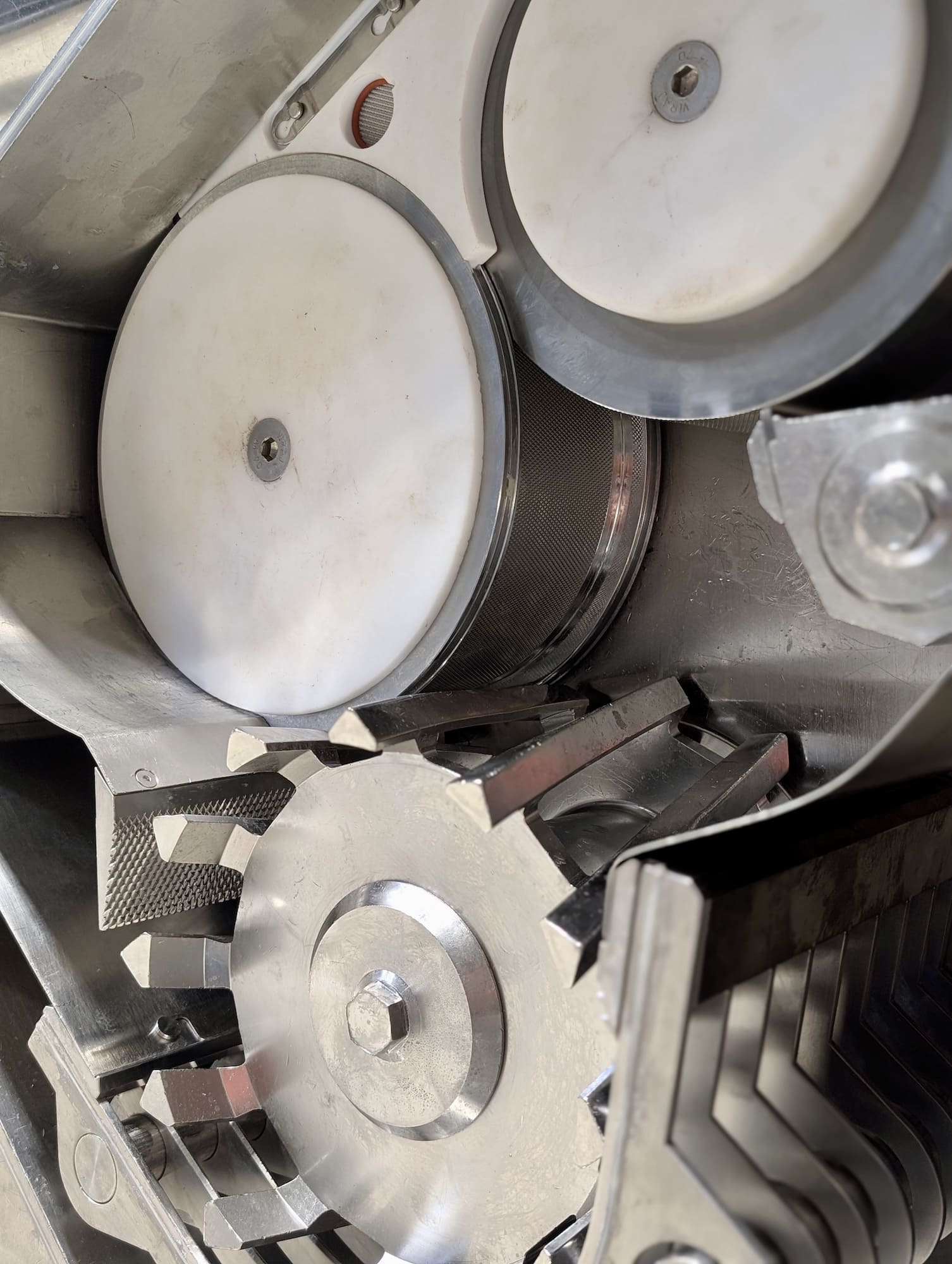

Compaction zone with pressure rollers

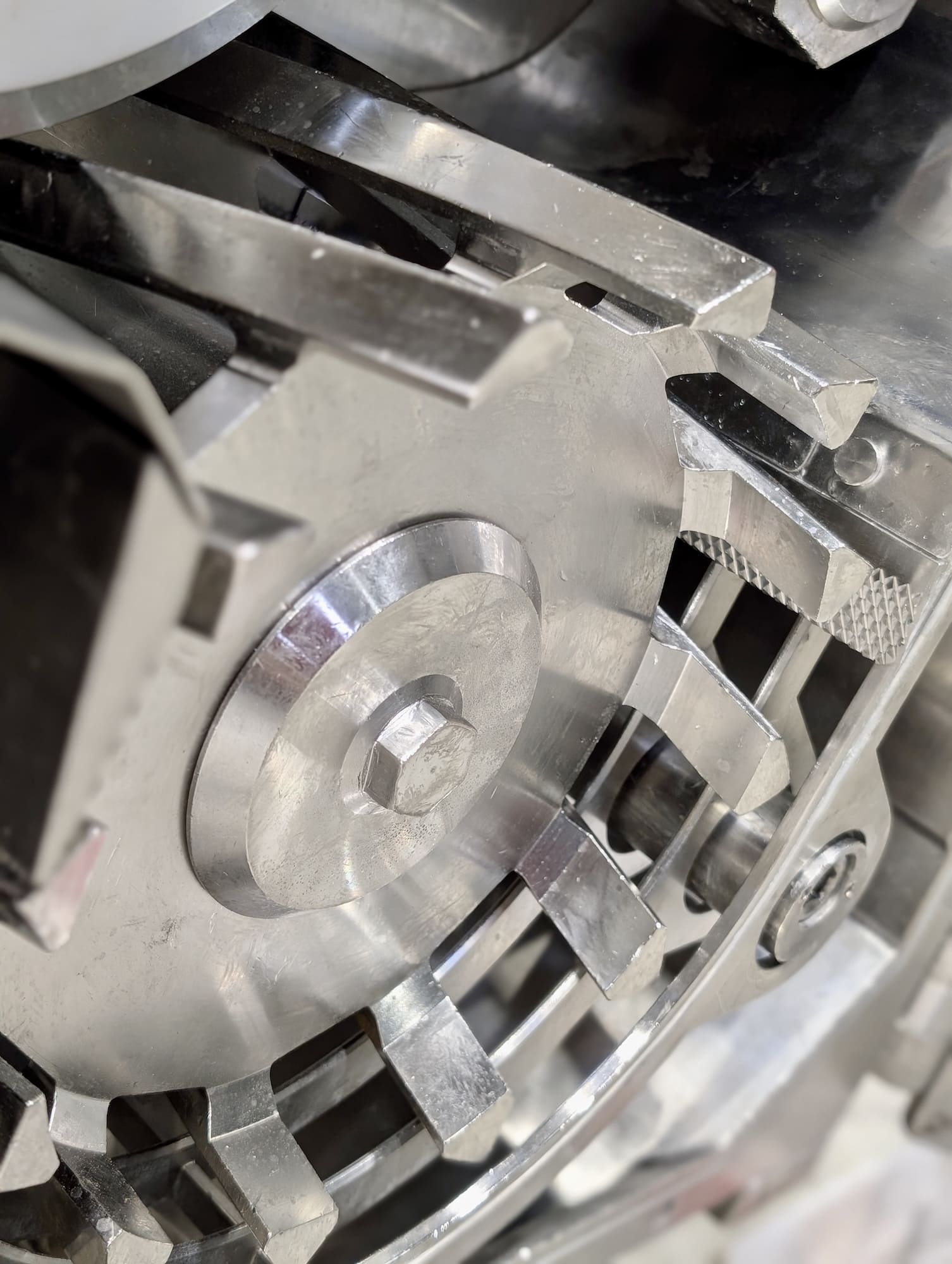

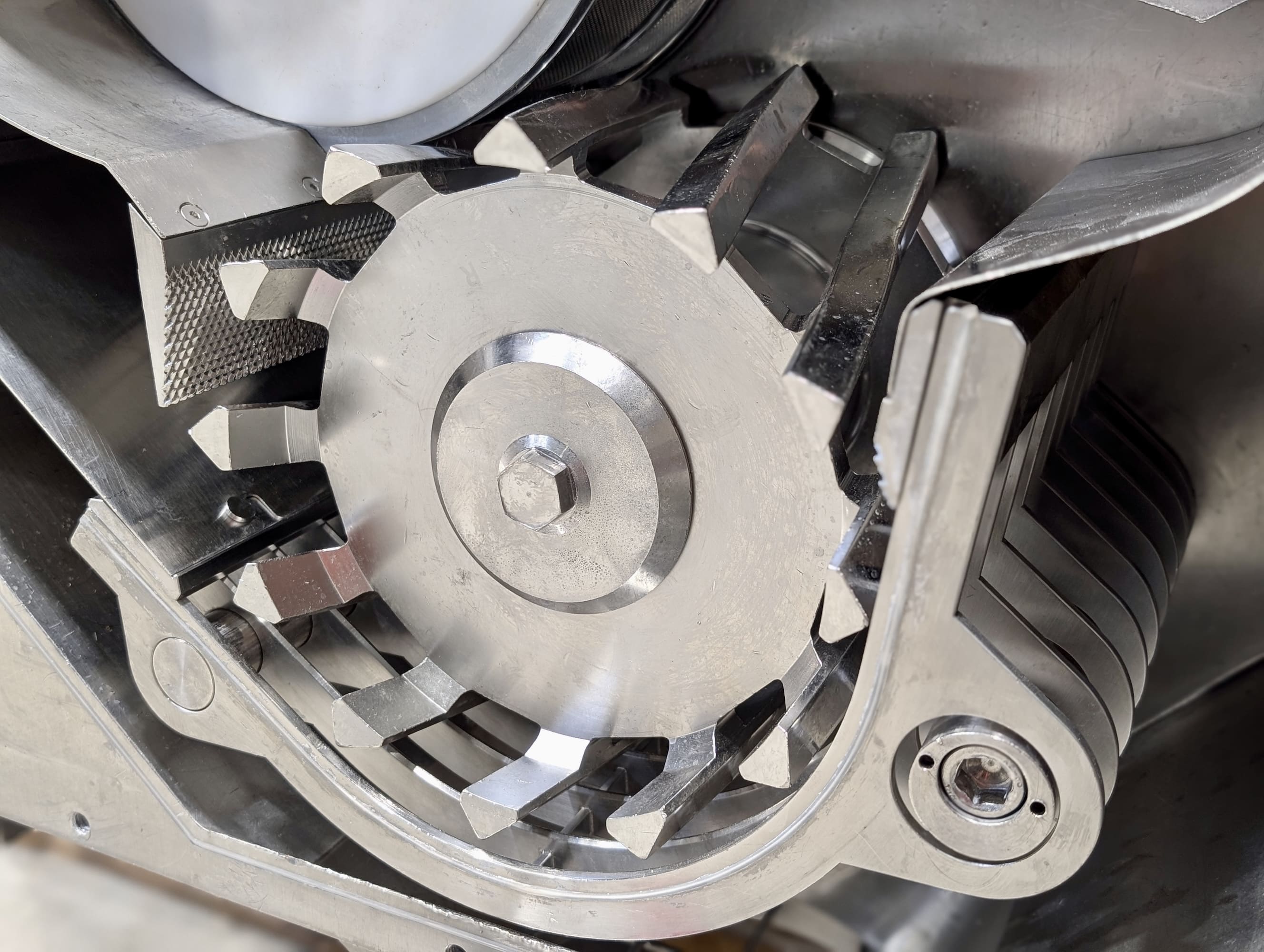

Granulation area with star rotor and screen

Force: 1 – 20 KN/cm
Gap width: 1.0 – 6.0 mm
Pressure roller speed: 1 – 30 rpm
Roller diameter: 250 mm
Roller width: 100 mm

Capacity: 60 – 400 Kg/H (normal value: 200 Kg/h)

Equipment dismantled and stored.

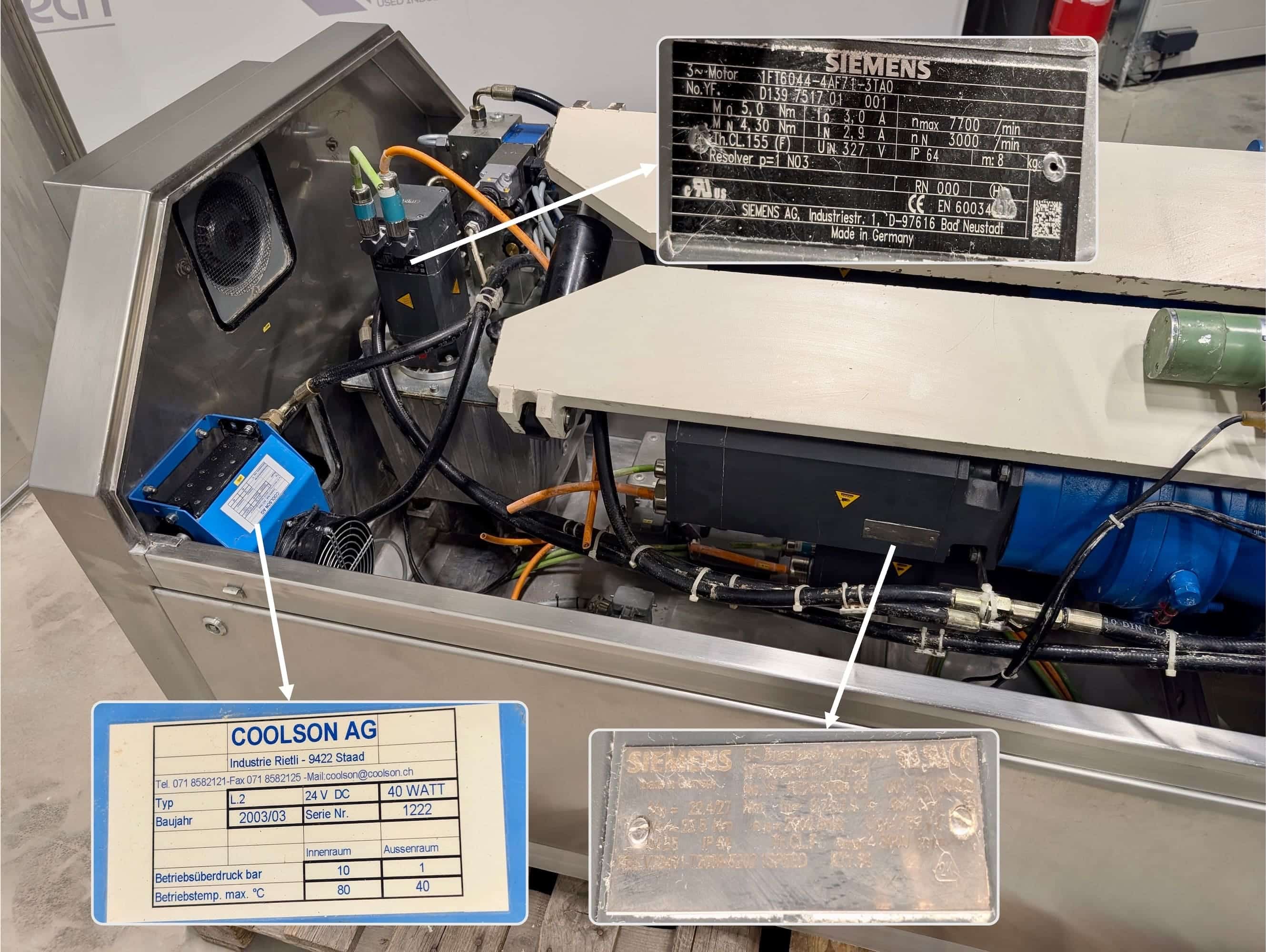

Full electrical and technical file + program backup available.

Electrical and safety control cabinet not available. These elements can be quoted separately.
