TECHNICAL DETAILS

A full coating unit, with its equipment, designed for coating products by means of a continuous or discontinuous spraying process.

Additional documents :

Equipment layout plan + cip system . pdf

1 Glatt GC 750/500 coating unit

– drive motor : 1,1 kW – 380 V – 50 hz – IP 54 – Ex
– air inlet fan : 1000 m3/h – 6860 rpm – 2’003 Pa – Max 80°C – 1,1 kW – IP 54
– air outlet fan: 1200 m3/h – 2900 rpm – 1’030 Pa – Max 80°C – 7,5 kW – IP 55
– Drum speed: 2 – 18 rpm
– Sold with two perforated drums ⌀500mm and ⌀750 mm
– Adaptable 2-head spray arm + Peristaltic pump

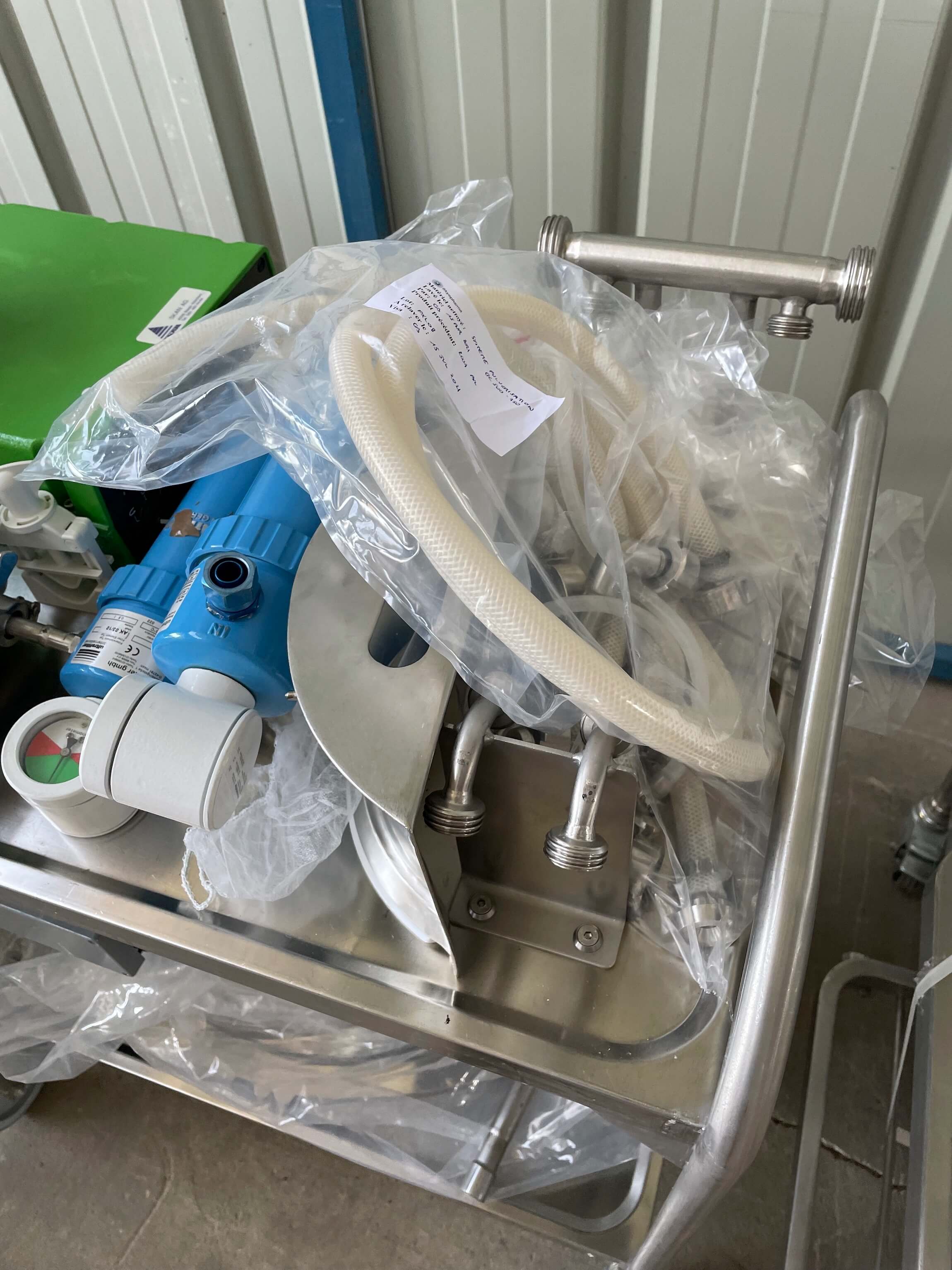

– Spare parts, seals, …
– Capacity :
20L : 7 to 15 kg
60L : 30 to 45 kg

1 Dust collector Herding FilterTechnik

Extraction air volume: 1200 m3 / h

1 Air treatment unit

1 Wanson CD-36 steam boiler

– Power: 36 kW
– Steam output: 48 kg/h
– Operating pressure: 5 bar
– Temperature : 159°C
– Water volume: 10 L

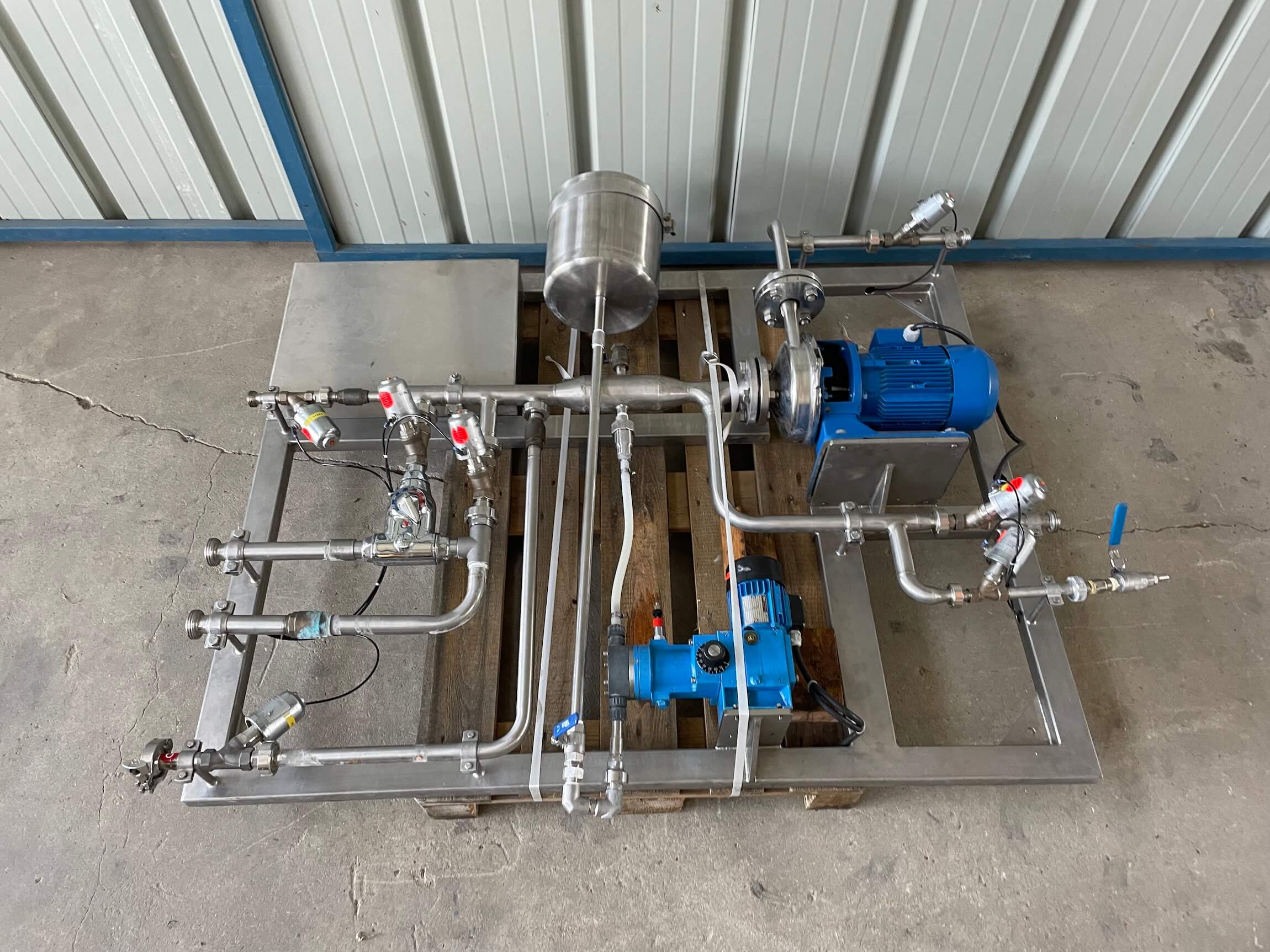

1 Cleaning system (CIP)

Used for easy cleaning and maintenance of the machine.

Additional information

Année

1995
